ELECTRICAL PARTS

ELECTRICAL PARTS assembly details for Stiga TORNADO 9121 WX (2T3040381/ST2) 2022 model

Parts list

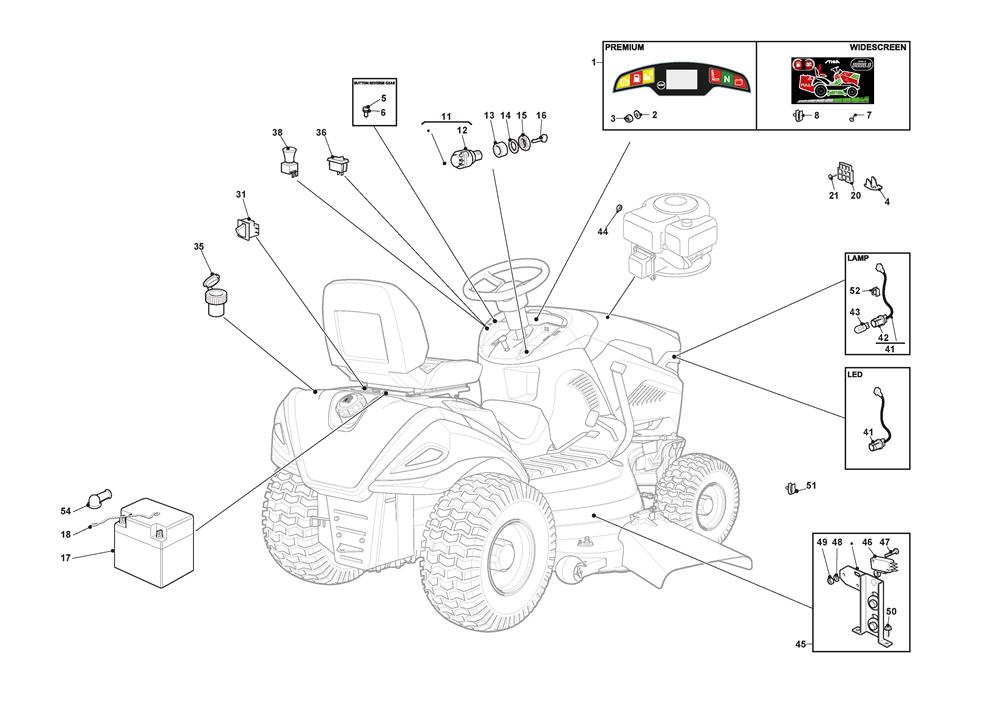

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382722457/1PC BOARD ASSEMBLY c/w DISPLAY [HONDA]£770.20 Add to
002112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
003112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
004325031501/0BUZZER SOUND AMPLIFIER£6.69 Add to
005325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
006325256250/0THREADED RING NUT£2.87 Add to
007112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
008133320506/0CABLE CLIP£1.79 Add to
011182040231/0ASS CABL TCHE-SD SERB POST TNS MOT GXV6£338.70 Add to
012118450072/0IGNITION SWITCH£32.19 Add to
013118550136/0PLASTIC RING NUT£2.06 Add to
014118550135/0RING NUT WASHER£2.06 Add to
015118400862/0THREADED RING NUT£4.64 Add to
016118210022/0IGNITION KEY [PAIR]£9.65 Add to
017118120072/0LEAD BATTERY 12V 22Ah 6-FM-20 CHUANGXIA.£106.15 Add to
018125430230/0SPRING ROD£3.55 Add to
020133500010/1FUSE HOLDER PLATE£2.06 Add to
031119410622/1MICRO SWITCH N.O.£7.10 Add to
035118450200/0CIGARETTE LIGHTER SOCKET£20.42 Add to
036118450084/0HEADLIGHT SWITCH£4.35 Add to
038118450073/0YELLOW CLUTCH SWITCH£15.41 Add to
041182040192/0HEADLIGHT CABLE [LED]£19.36 Add to
042133500030/0LAMP HOLDER£4.23 Add to
043118459104/0LED LIGHT£43.22 Add to
044112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
045382394853/0LCMICRO SWITCH ASSEMBLY£57.52 Add to
046119410609/1LCNEUTRAL KEDU SWITCH [HYDRO]£28.90 Add to
047112735602/0"SELF-FORMING SCREW M3 x 20 ""TAPTITE""£2.06 Add to
048112581100/0WASHER GROWER M3 UNI 1751 WZ£1.79 Add to
049112290791/0HEXAGON NUT M3 UNI 5588 ACC.6S£2.06 Add to
050112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
051133320506/0CABLE CLIP£1.79 Add to
052133320504/0CABLE CLIP£2.06 Add to
054118564864/1RED RUBBER TERMINAL COVER£6.01 Add to
