BODYWORK

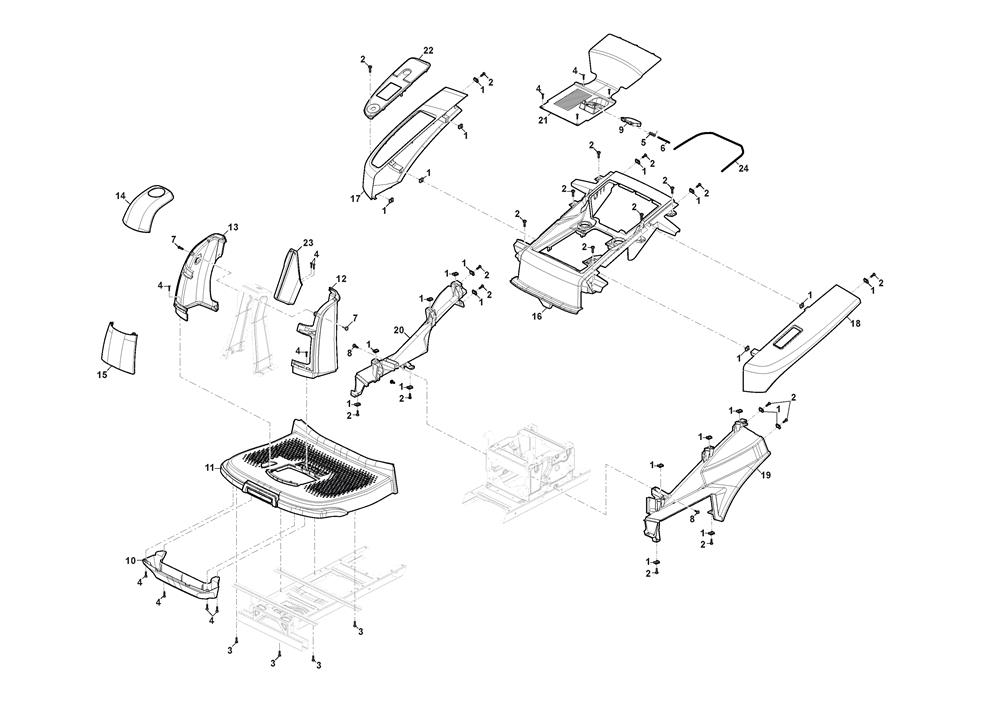

BODYWORK assembly details for Stiga SWIFT 372E (2T0250481/ST1) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112437507/0RAPID FIXING PLATE M6£2.06 Add to
002112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
003112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
004112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
005125430296/1SPRING£1.50 Add to
006125510183/0FULCRUM COVER PIN£1.55 Add to
007125943004/0FLANGED SCREW TE 4.8£1.91 Add to
008125943010/0FLANGED SCREW£2.06 Add to
009325207295/0CHARGER PLUG COVER (BLACK)£3.65 Add to
010327110592/0FRONT SLIP PLATE [GREY]£16.38 Add to
011327110593/0FOOTPLATE£60.79 Add to
012327110594/0L/H STEERING COLUMN COVER [GREY]£11.76 Add to
013327110595/0R/H STEERING COLUMN COVER [GREY]£11.76 Add to
014327110596/0UPPER FRONT PLATE [YELLOW]£7.57 Add to
015327110597/0LOWER FRONT PLATE [YELLOW]£7.57 Add to
016327110598/0MAIN BODY£45.90 Add to
017327110599/0R/H CENTRAL WHEELS COVER [YELLOW]£25.50 Add to
018327110600/1L/H CENTRAL WHEELS COVER [YELLOW]£29.64 Add to
019327110607/0MAIN BODY LEFT SIDE£23.56 Add to
020327110608/0MAIN BODY RIGHT SIDE£23.56 Add to
021327110609/0CENTRAL COVER MAIN BODY£17.65 Add to
022327120100/0COMMAND PANEL HOLDER E1-2 NCS8000N£7.97 Add to
023327206853/0BOTTLE/CELL PHONE HOLDER£10.88 Add to
024127285002/0ADHESIVE FOAM SEALING STRIP R72£5.59 Add to
