BODYWORK

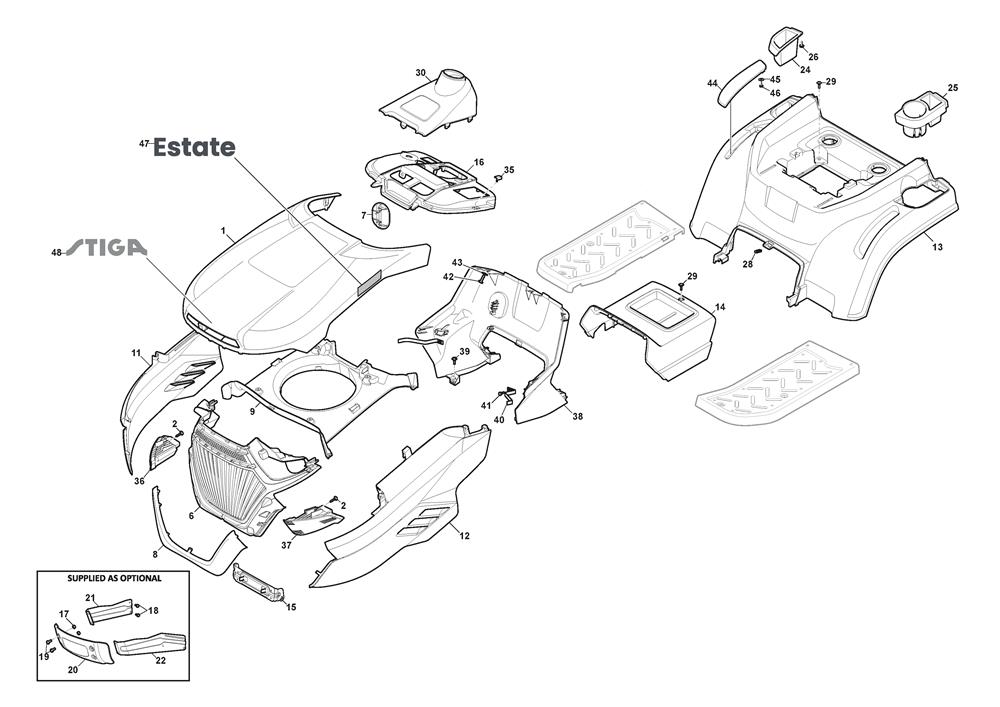

BODYWORK assembly details for Stiga ESTATE 584E (2T2205481/ST2) 2022 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076984/0ENGINE HOOD (YELLOW/BLACK)£122.18 Add to
002112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
006325076997/0FRONT HOOD [BLACK]£62.97 Add to
007325207296/0PARK SLOT COVER (BLACK)£7.59 Add to
008325076998/1LOWER FRONT HOOD (GREY)£16.67 Add to
009325108109/0STIGA YELLOW BONNET AIR CONVEYOR SDST£37.64 Add to
011325207306/0R/H SIDE BONNET COVER [GREY]£56.38 Add to
012325207307/0L/H SIDE BONNET COVER [GREY]£55.03 Add to
013325110438/3WHEELS COVER [YELLOW]£145.72 Add to
014325110541/0CENTRAL COVER (GREY)£40.81 Add to
015325785551/1ENGINE HOOD SUPPORT£11.67 Add to
016325120293/0DASHBOARD FRONT USB SOCKET£32.19 Add to
017112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
018112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
019112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
020382263501/0FRONT GUARD£33.62 Add to
021382785255/0RIGHT BUMPER SUPPORT£29.14 Add to
022382785257/0LEFT BUMPER SUPPORT£29.14 Add to
024325207198/0R/H WHEEL COVER HOLDER [BLACK]£9.23 Add to
025325207199/1L/H WHEEL COVER HOLDER [BLACK]£12.30 Add to
026112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
028112437506/0DOUBLE PLATE£2.87 Add to
029125943010/0FLANGED SCREW£2.06 Add to
030325120291/0HIGH DASHBOARD (BLACK)£18.27 Add to
035325260003/0DASHBOARD GROMMET£2.06 Add to
036382185523/0R/H LAMP LIGHT (BLUE)£43.44 Add to
037382185524/0L/H LAMP LIGHT (BLUE)£43.44 Add to
038325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
039125943010/0FLANGED SCREW£2.06 Add to
040325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
041112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
042112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
043112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
044325207203/1COVER [BLACK]£4.00 Add to
045112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
046112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
047114372972/0DECAL "ESTATE" STIGA£10.01 Add to
048114367495/1EMBLEM DECAL STIGA 3D 120 x 25mm£9.96 Add to
