SEAT & STEERING WHEEL

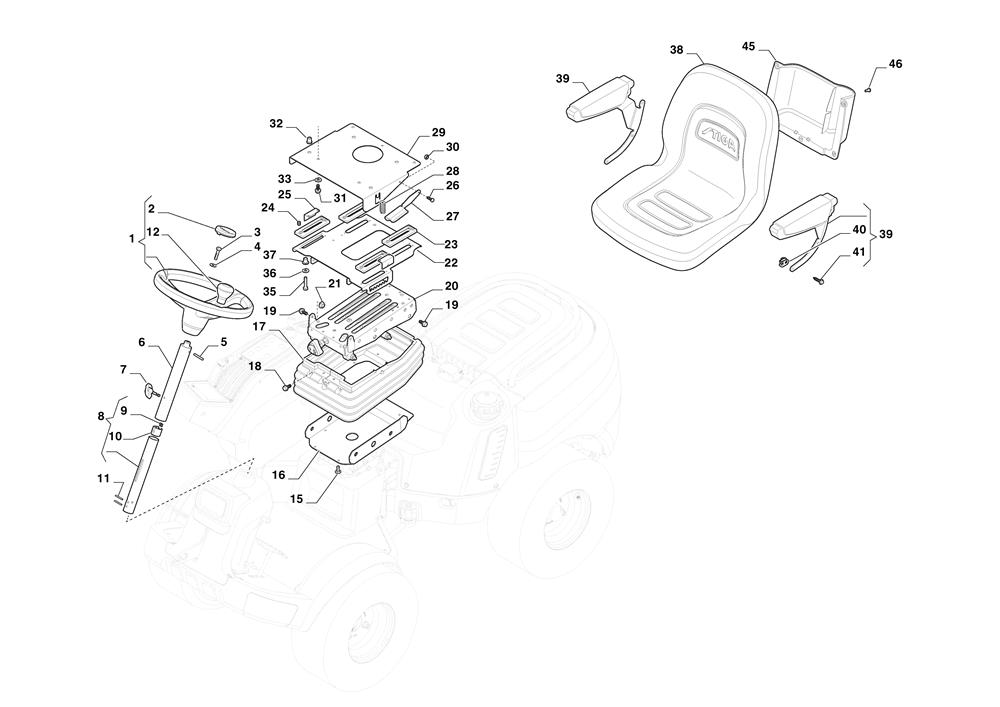

SEAT & STEERING WHEEL assembly details for Stiga PARK PRO 900 WX (2F6430831/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
005112620299/0SPIROL FLEXIBLE PIN 6 x 45£1.91 Add to
0101134-5177-01SLIDE COLLAR£13.64 Add to
012187593701/0STEERING WHEEL KNOB£48.11 Add to
015118737220/0PLASTIC FASTPOINT CLIP£2.06 Add to
021112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
024112500070/0RIVET D=4.8 x 12£1.79 Add to
0271134-6073-01HANDLE ASSEMBLY£41.16 Add to
0281134-3262-01SPRING£8.73 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
032112500094/0SEMI-HEXAGONAL RIVET NUT M8£2.47 Add to
033112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
035112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
036112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
037137040602/0SEAT GUIDE BUSH£6.42 Add to
038137722603/2SEAT [PARK]£381.83 Add to
0401139-0011-01SPEED NUT PLATE-ARM RESTS£3.55 Add to
0411139-0010-01SCREW-ARM RESTS£3.81 Add to
046112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
