POWER TAKE - OFF

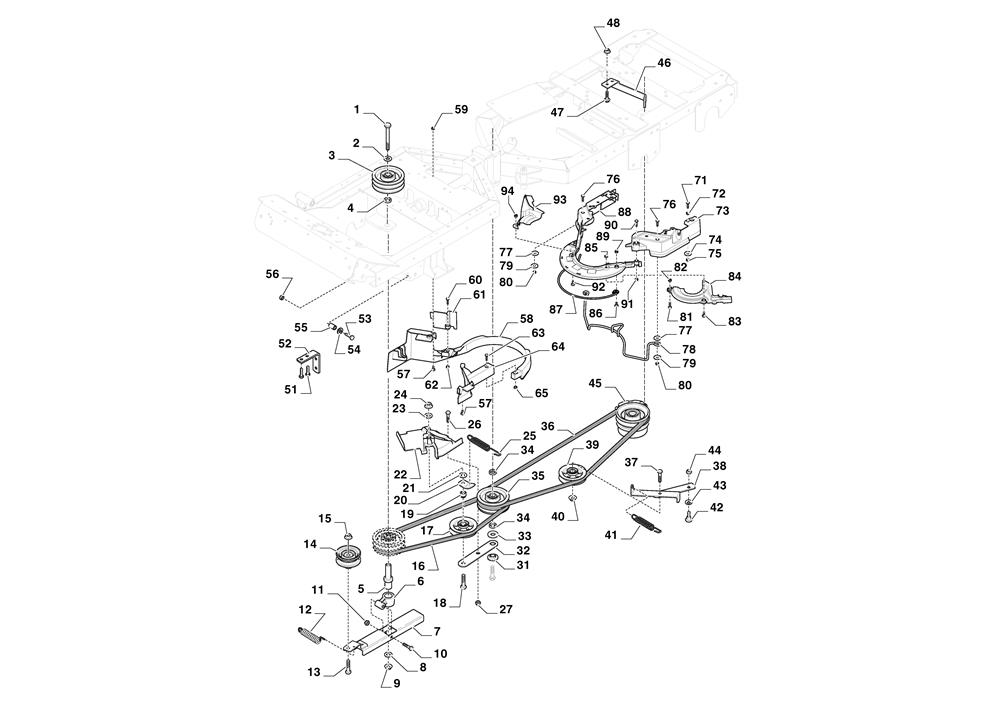

POWER TAKE - OFF assembly details for Stiga PARK PRO 900 WX (2F6430831/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0041134-0052-00SPACER£8.87 Add to
0051134-5663-01SHAFT£43.93 Add to
0061134-6314-01TENSION ARM ATTACHMENT£9.00 Add to
0071134-5660-01TENSION ARM£42.83 Add to
010112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0121134-5824-01SPRING£5.87 Add to
013112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0161134-9098-01PTO DRIVE BELT [4WD]£27.27 Add to
0191134-1888-06SPACER£9.41 Add to
021137038000/0BUSH£5.46 Add to
0251134-5713-04SPRING£7.73 Add to
026112674700/0SCREW M6 X 35£2.06 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0311134-0222-00TENSION WASHER£14.45 Add to
0321134-1730-02TENSIONING WHEEL ARM£42.53 Add to
0341134-0052-00SPACER£8.87 Add to
0361134-9097-01PTO DRIVE BELT£52.06 Add to
037112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0381134-5742-01TENSION ARM£41.16 Add to
0411134-5713-03SPRING£13.40 Add to
0421134-0240-00SCREW£9.14 Add to
044112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0451134-5674-01MAGNET CLUTCH£470.41 Add to
0461134-6452-01STRUT£28.90 Add to
048112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0521134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
053112735669/0SCREW TCB TORX M6 x 50£2.06 Add to
054112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
0551134-1565-14SPACER£2.18 Add to
056112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
059112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
062112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
065112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
072112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
074112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
075112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
077112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
079112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
080112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
081112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
082112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
083112791213/1SCREW M6 X 18£1.74 Add to
083112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
085112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
086112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
087137294101/0CENTRAL BELT GUIDE£14.18 Add to
089112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
091112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
091112791213/1SCREW M6 X 18£1.74 Add to
091112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
094112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
