FRAME

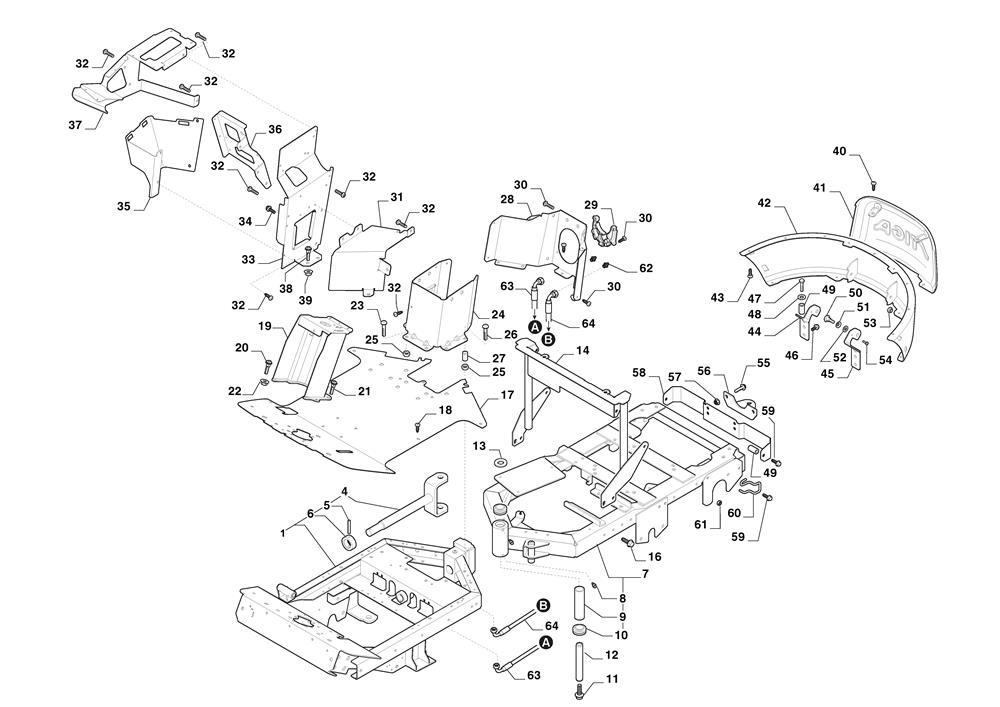

FRAME assembly details for Stiga PARK PRO 900 WX (2F6430831/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0061134-0031-00PIVOT SHAFT STOP£24.95 Add to
008112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
0091134-5705-01SPACER£19.36 Add to
0121134-5988-01CENTRE SHAFT£22.76 Add to
020112818700/0SCREW M8 x 25£2.81 Add to
021112760610/1SCREW M8 x 25 GEO321A£2.06 Add to
022112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
025112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
027137038008/0TRANSMISSION PULLEY BUSH£9.00 Add to
034112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
043112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
048122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
0491134-1565-09SPACER£13.90 Add to
0501134-0240-00SCREW£9.14 Add to
0521134-4242-01SPACER WASHER£4.78 Add to
053112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
0561134-5512-01TOWING PLATE£20.72 Add to
057112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
061112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
062112379511/0STRAIGHT GREASE NIPPLE M6 x 1£2.06 Add to
