BODY

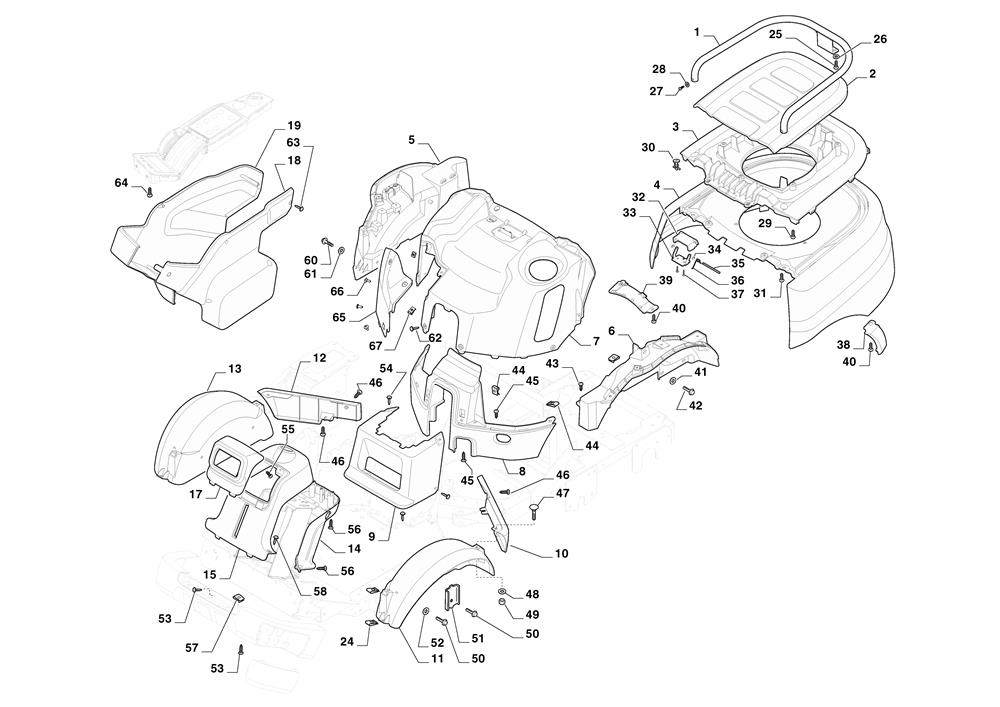

BODY assembly details for Stiga PARK PRO 900 WX (2F6430831/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
025112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
026112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
028112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
029112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
030125580020/2SPRING TENSIONED SCREW£7.23 Add to
031112728904/0SELF-TAPPING SCREW K60 X 22 WM1451£1.95 Add to
034112000915/0CIRCLIP D=4£2.06 Add to
035137510300/0HANDLE BONNET PIN£5.76 Add to
036137430100/0SPRING£5.87 Add to
037112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
041112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0441134-4176-01CLIP£5.19 Add to
047112815200/0SCREW TTDQ M6X16£2.06 Add to
048112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
049112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0511137-0088-01SUPPORT PLATE£2.74 Add to
052112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
0541134-4176-01CLIP£5.19 Add to
055112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
0571134-4176-01CLIP£5.19 Add to
061112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
063112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
064112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
0671134-4176-01CLIP£5.19 Add to
