PISTON , CRANKSHAFT , CRANKCASE

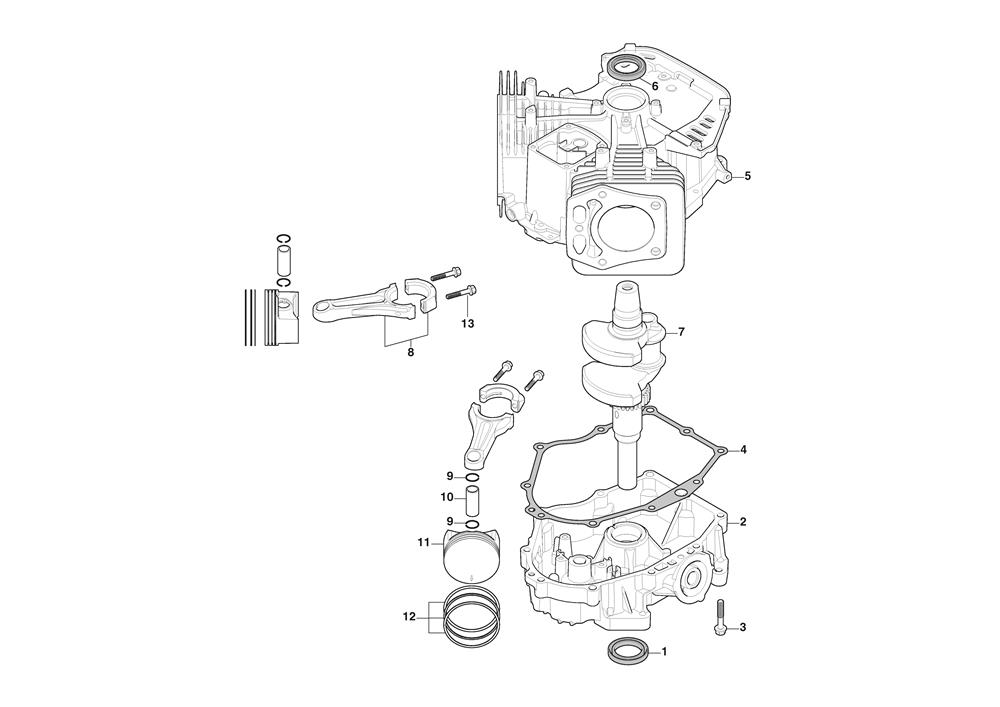

PISTON , CRANKSHAFT , CRANKCASE assembly details for Stiga PARK 900 WX (2F6230845/ST2) 2023 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551602/0OIL SEAL£12.00 Add to
002118551541/0CRANKCASE COVER£177.43 Add to
004118551542/0CRANKCASE GASKET£17.59 Add to
005118552565/0CYLINDER£526.72 Add to
006118551418/0OIL SEAL£10.36 Add to
007118551555/0CRANKSHAFT£218.32 Add to
008118551554/1CONNECTING ROD£44.04 Add to
009118551600/0PISTON PIN RING£2.06 Add to
010118551552/0PISTON PIN£7.63 Add to
011118551551/0PISTON£42.53 Add to
012118551553/0PISTON RINGS£34.35 Add to
013118552498/0BOLT£3.22 Add to
