Electrical parts

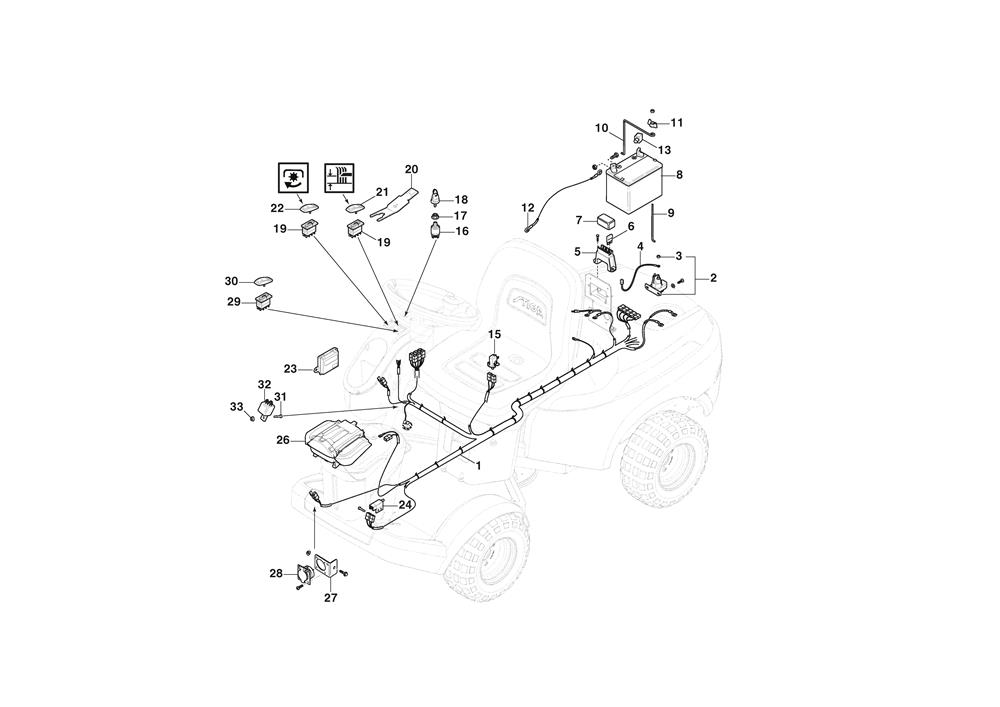

Electrical parts assembly details for Stiga Park 520 P (2F6220545/ST1) 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	187040336/0	WIRING HARNESS	£334.18	Add to
002	118736112/0	SOLENOID	£39.80	Add to
003	9743-5121-32	LOCK NUT 5/16"	£1.79	Add to
004	1134-4970-02	CABLE	£23.45	Add to
005	1134-3491-01	FUSE HOLDER	£13.90	Add to
006	133340040/0	FUSE 10A	£2.47	Add to
006	1134-3496-06	FUSE 20A	£2.06	Add to
006	1134-3496-07	FUSE 30A	£5.05	Add to
007	1134-3631-01	COVER-FUSE HOLDER	£12.96	Add to
008	118120065/0	BATTERY YUASA 12V 30AH NO RETURNS ON THIS ITEM	£109.58	Add to
009	1134-5995-01	BATTERY LOOP	£6.55	Add to
010	1134-5994-01	BATTERY LOOP	£9.82	Add to
011	1134-4481-02	WING NUT	£6.14	Add to
012	1134-0234-02	BATTERY CABLE (+)	£24.95	Add to
013	1134-2310-01	GUARD CAP (+)	£9.28	Add to
015	1134-3156-01	SEAT SWITCH [BLACK]	£45.26	Add to
016	1134-4093-01	IGNITION SWITCH	£67.05	Add to
017	1134-4749-01	NUT	£5.05	Add to
018	1134-4734-01	IGNITION KEY	£17.72	Add to
019	9400-0282-01	SWITCH C/W DIODE	£76.59	Add to
020	9400-0290-01	TOOL	£27.27	Add to
021	9400-0280-03	SWITCH COVER-HEIGHT ADJUST	£18.27	Add to
022	9400-0343-01	SWITCH COVER-PTO	£9.28	Add to
023	387722401/0	PC BOARD BLUETOOTH	£96.24	Add to
024	1134-3399-02	SWITCH	£45.26	Add to
026	387184253/0	FRONT LED LIGHT & CABLE	£267.35	Add to
027	1137-0075-01	ATTACHMENT BRACKET	£9.94	Add to
028	387149302/0	2 POLE FEMALE CONNECTOR	£11.33	Add to
029	9400-0283-01	SWITCH	£92.95	Add to
