Chassis

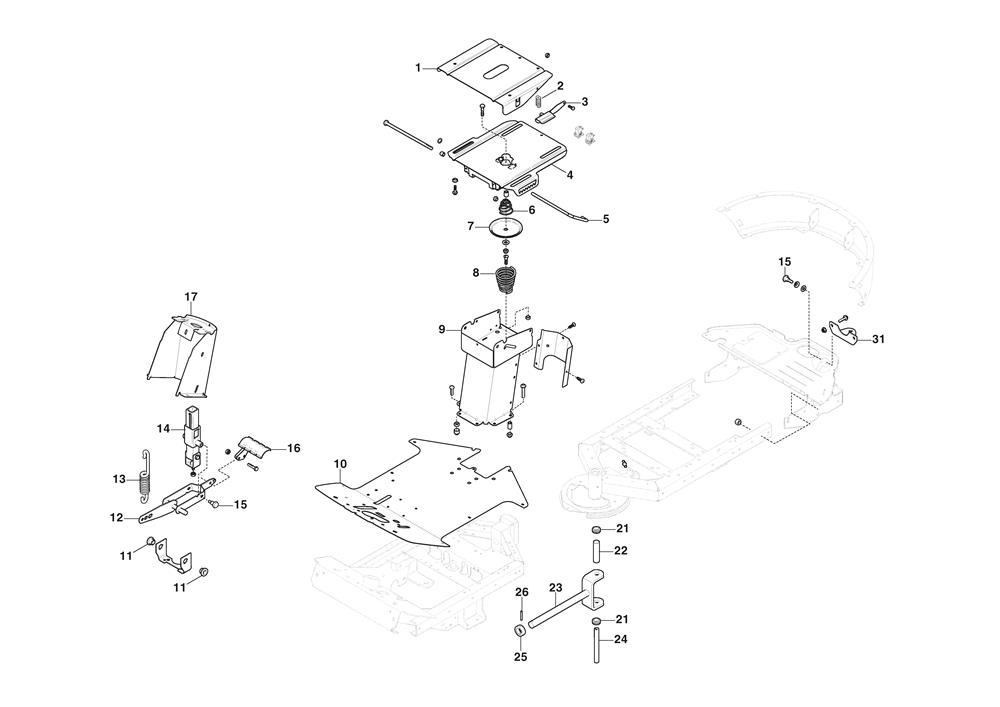

Chassis assembly details for Stiga Park 345 PWX (2F6130535/ST1 2021 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-6090-01	UPPER SLIDE PLATE	£99.76	Add to
002	1134-3262-01	SPRING	£8.73	Add to
003	1134-6073-01	HANDLE ASSEMBLY	£41.16	Add to
004	1134-6068-01	LOWER SLIDE PLATE	£114.96	Add to
005	1134-5179-01	CATCH ROD	£13.77	Add to
006	1134-5302-01	SPRING	£8.87	Add to
007	1134-5299-01	PUSH PLATE	£17.86	Add to
009	387785275/0	SEAT SUPPORT ASSEMBLEY [BLACK]	£114.96	Add to
010	387507505/0	FOOTBOARD	£187.14	Add to
011	1134-2684-01	BUSH	£7.10	Add to
012	387256055/0	LIFT LEVER ASSEMBLY	£94.31	Add to
013	4231-0013-00	SPRING	£8.87	Add to
014	1134-4945-01	LIFT CATCH ASSEMBLY	£124.29	Add to
015	1134-0240-00	SCREW	£9.14	Add to
016	387500013/0	LIFTING DECK PEDAL	£26.46	Add to
017	387785243/0	STEERING COLUMN COVER	£157.20	Add to
021	9547-0001-00	BEARING	£24.95	Add to
022	1134-5705-01	SPACER	£19.36	Add to
024	1134-5988-01	CENTRE SHAFT	£22.76	Add to
025	1134-0031-00	PIVOT SHAFT STOP	£24.95	Add to
026	9595-0262-00	LOCATING PIN	£2.06	Add to
031	1134-5512-01	TOWING PLATE	£20.72	Add to
