PTO - 4WD

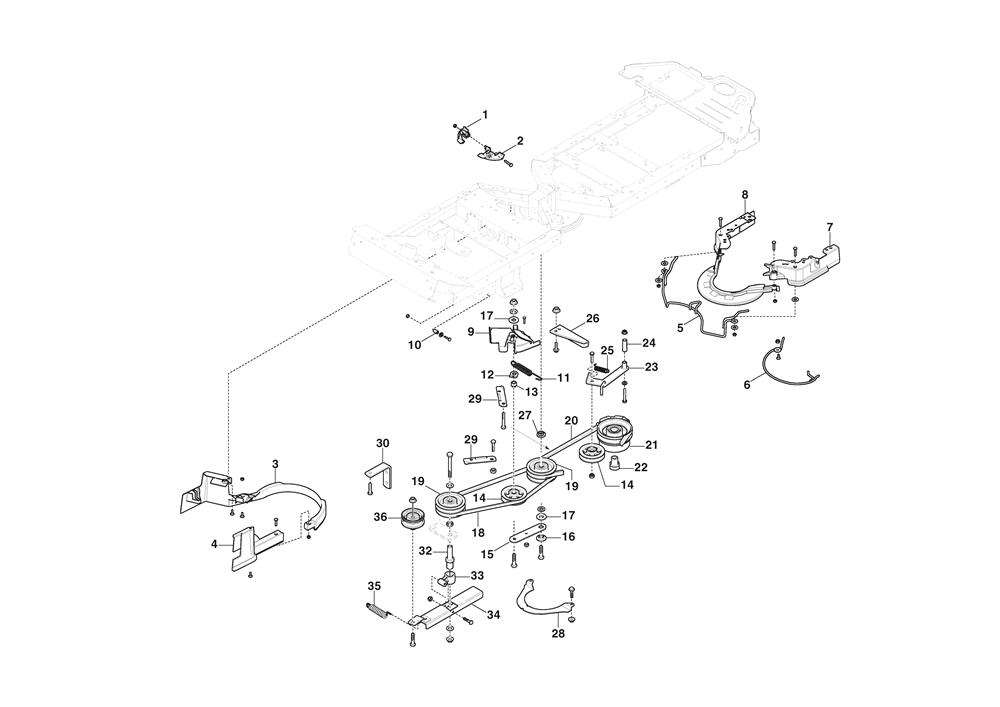

PTO - 4WD assembly details for Stiga Park 340 PWX (2F6130645/ST1) 2021 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001337600010/0RIGHT PULLEY GUARD£4.52 Add to
002337600011/0LEFT PULLEY GUARD£4.37 Add to
003337060002/0FRONT RIGHT BELT GUARD£11.04 Add to
004337060036/1FRONT LEFT BELT GUARD£7.23 Add to
005337785113/0CENTRAL SUPPORT ROD£58.87 Add to
006137294105/0CENTRAL BELT GUIDE£33.42 Add to
007337060001/1REAR LEFT BELT GUARD£7.23 Add to
008337060000/2REAR RIGHT BELT GUARD£7.92 Add to
009337600001/2PULLEY PROTECTION GUARD£9.31 Add to
0101134-1565-14SPACER£2.18 Add to
0111134-5713-04SPRING£7.73 Add to
012337546545/0SPRING HOOKING PLATE£5.60 Add to
0131134-1888-06SPACER£9.41 Add to
014387605009/0TENSION PULLEY ASSY£50.80 Add to
0151134-1730-02TENSIONING WHEEL ARM£42.53 Add to
0161134-0222-00TENSION WASHER£14.45 Add to
017137038000/0BUSH£5.46 Add to
0181134-9239-01TRANSMISSION BELT X17 ZS31£66.84 Add to
019387605002/0DOUBLE CENTRE PULLEY ASSEMBLY£84.77 Add to
0201134-9047-01PTO DRIVE BELT£47.97 Add to
0211134-7526-01MAGNETIC CLUTCH (NO RETURNS ON THIS ITEM )£287.40 Add to
0221134-5016-01BUSH (FOR ELECTRIC PTO-CLUTCH)£31.63 Add to
0231134-3658-02TENSIONING ARM£91.58 Add to
0241134-1565-10SPACER£8.73 Add to
0251134-3379-01SPRING£18.27 Add to
026387773575/0BRACKET£18.84 Add to
0271134-5548-01SPACER£14.32 Add to
0281134-3654-01GUARD£35.71 Add to
029337546547/0PLATE£5.64 Add to
0301134-5112-01SPRING ATTACHMENT BRACKET£27.27 Add to
0311134-0052-00SPACER£8.87 Add to
0321134-5663-01SHAFT£43.93 Add to
0331134-6314-01TENSION ARM ATTACHMENT£9.00 Add to
0341134-5660-01TENSION ARM£42.83 Add to
0351134-5824-01SPRING£5.87 Add to
036387605013/0TENSION PULLEY ASSY£41.44 Add to
