Steering

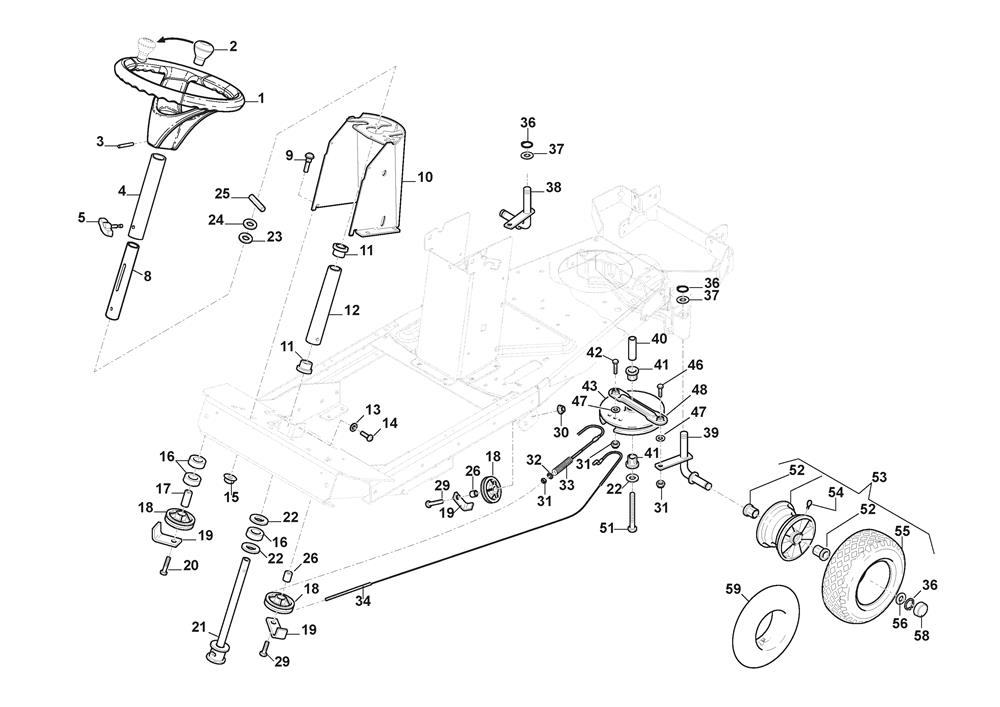

Steering assembly details for Stiga Villa 16 HST (2F2720511/S17) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1134-5494-01	STEERING WHEEL	£64.32	Add to
002	1134-3769-01	STEERING WHEEL BUTTON KIT	£37.08	Add to
003	9595-0277-01	LOCATING PIN	£2.06	Add to
004	387520115/0	UPPER STEERING COLUMN	£35.71	Add to
005	337394201/0	WING NUT	£13.64	Add to
008	387520123/0	INNER STEERING TUBE ASSEMBLY	£67.05	Add to
011	1134-1901-01	PLASTIC BUSH	£12.27	Add to
012	387520125/0	LOWER STEERING COLUMN	£39.80	Add to
013	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
014	9893-0616-16	SCREW M6 x 16	£2.47	Add to
015	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
016	1134-3047-01	SPACER	£8.04	Add to
017	1134-0041-05	BUSH	£11.46	Add to
018	1134-9025-01	STEERING PULLEY [2 PCS]	£20.09	Add to
019	1134-0046-00	BRACKET	£2.14	Add to
020	112692395/2	SCREW M10 x 60	£3.49	Add to
022	112521390/0	WASHER M16 17 x 30 x 3	£1.91	Add to
023	9699-0114-02	WASHER 16 x 38 x 1	£2.32	Add to
024	9699-0103-02	WASHER	£2.47	Add to
025	9595-0262-00	LOCATING PIN	£2.06	Add to
026	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
029	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
030	9739-1031-22	NUT M10	£2.32	Add to
031	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
032	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
033	1134-1310-01	SPRING	£19.22	Add to
034	187000209/0	STEERING CABLE [VILLA]	£47.97	Add to
036	112609260/0	CIRCLIP D=20	£2.02	Add to
037	9699-0088-02	WASHER	£2.47	Add to
038	1134-5009-01	RIGHT STUB AXLE	£62.97	Add to
039	1134-5009-02	LEFT STUB AXLE	£62.97	Add to
040	1134-5575-01	SPACER SLEEVE	£7.92	Add to
041	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
042	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
043	387605001/0	STEERING PULLEY	£77.95	Add to
046	112793301/0	HEX-HEAD SCREW M8 x 25	£2.06	Add to
047	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
048	1134-3247-05	TIE ROD	£31.63	Add to
051	112694100/0	HEX-HEAD SCREW M16 x 80	£3.69	Add to
052	137038009/0	WHEEL BUSH	£6.09	Add to
053	387680305/0	REAR WHEEL ASSY 13" (STARCO/KENDA)	£109.61	Add to
054	9545-0500-00	VALVE ASSY.	£5.73	Add to
055	9545-0117-00	TYRE 13 X 5.00-6	£53.47	Add to
056	1134-0341-01	WASHER	£7.10	Add to
058	1134-4344-01	HUB CAP [BLACK]	£9.82	Add to
059	9545-0204-00	INNER TUBE 13 X 5.00-6/2	£22.08	Add to
