Engine

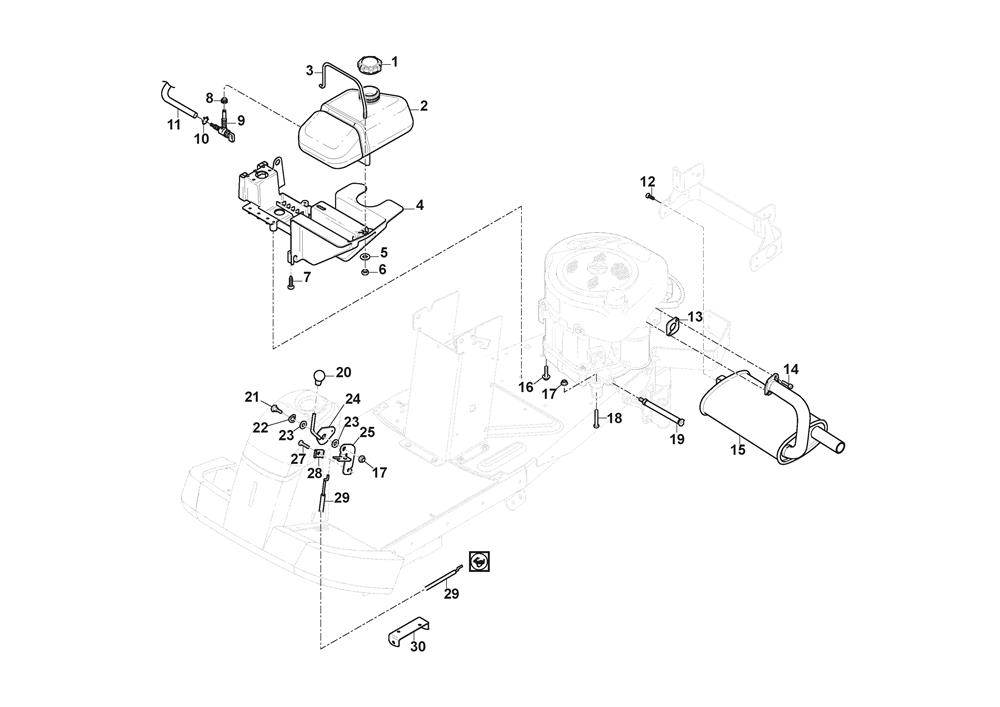

Engine assembly details for Stiga Villa 16 HST (2F2720511/S17) 2020 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125795001/1	FUEL TANK CAP	£8.32	Add to
002	1134-6626-01	FUEL TANK	£45.26	Add to
003	1134-4808-01	TANK CLAMP	£14.32	Add to
004	1134-4807-02	BATTERY SUPPORT PLATE	£91.58	Add to
005	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
006	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
007	9838-8822-19	SCREW K60 x 22	£2.06	Add to
008	337260156/0	GROMMET	£8.84	Add to
009	1134-3224-01	FUEL SHUT-OFF VALVE	£24.95	Add to
010	9578-0023-02	HOSE CLAMP	£5.73	Add to
011	1134-2975-15	FUEL HOSE (L=1400)	£32.99	Add to
012	9893-0616-16	SCREW M6 x 16	£2.47	Add to
013	1134-0433-00	MUFFLER GASKET	£5.87	Add to
014	1134-4930-01	SCREW	£2.32	Add to
015	387753303/0	MUFFLER	£259.19	Add to
016	9955-3725-16	SCREW 3/8" x 25	£2.87	Add to
017	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
018	112691115/0	HEX-HEAD SCREW M8 x 40	£2.06	Add to
019	1134-5827-05	OIL DRAIN ASSEMBLY	£35.71	Add to
020	1134-4078-01	KNOB	£5.87	Add to
021	1134-0240-00	SCREW	£9.14	Add to
022	9694-0001-00	SPACER WASHER	£2.06	Add to
023	1134-4242-01	SPACER WASHER	£4.78	Add to
025	1134-5464-01	BRACKET	£28.90	Add to
027	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
028	9500-9991-00	CABLE CLAMP	£7.78	Add to
029	1134-4197-03	THROTTLE CABLE	£24.95	Add to
030	1134-6370-01	WIRE GUIDE	£10.50	Add to
