Transmission

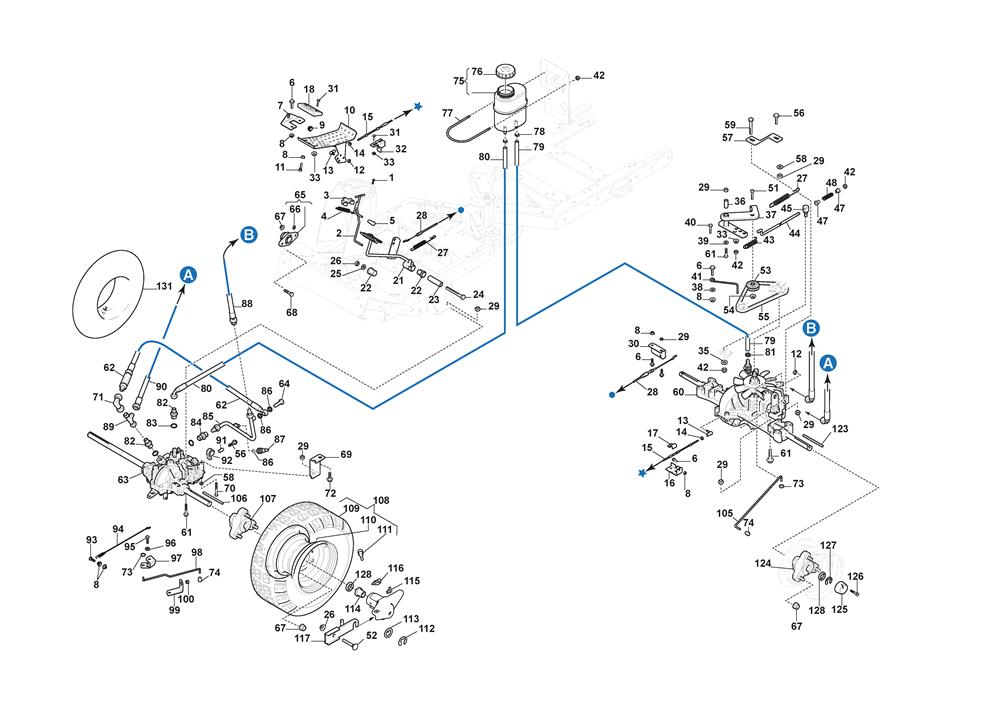

Transmission assembly details for Stiga Park 740 PWX (2F6230621/S16) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
002	1134-5353-01	BRAKE ROD	£29.61	Add to
003	1134-4002-01	BRAKE ROD ATTACHMENT	£12.27	Add to
004	1131-1497-01	BRAKE SPRING	£10.50	Add to
005	1134-2786-01	PLASTIC KNOB	£6.42	Add to
006	9959-0820-16	FLANGED SCREW M8 x 20 8.8 DIN 6921	£2.06	Add to
007	1134-2700-01	BRACKET	£17.45	Add to
008	112154220/0	SELF-LOCK FLANGED NUT M8	£3.03	Add to
009	1134-6313-01	BEARING	£7.36	Add to
010	1134-6353-01	IMPLEMENT PEDAL	£43.62	Add to
011	9997-0835-16	SCREW M6S 8 x 35	£2.32	Add to
012	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
013	9570-0001-00	ELBOW LINK	£18.90	Add to
014	9739-0531-22	NUT M5	£2.47	Add to
015	1134-2766-05	SPEED CONTROL CABLE	£76.59	Add to
016	1134-3395-01	ATTACHMENT BRACKET	£30.26	Add to
017	1134-2021-01	CLAMP	£7.36	Add to
018	1134-6340-02	FOOT REST	£7.92	Add to
021	1134-5655-01	BRAKE/CLUTCH PEDAL	£58.87	Add to
022	1134-9024-01	PLASTIC BUSH (4 PCS)	£19.66	Add to
023	1134-5677-02	SPACER	£11.04	Add to
024	9997-1070-12	SCREW M6S (M10 X 70)	£3.81	Add to
025	9699-0030-02	WASHER (10 X 26 X 2)	£2.14	Add to
026	9739-1031-22	NUT M10	£2.32	Add to
027	4231-0013-00	SPRING	£8.87	Add to
028	187000211/1	BRAKE CABLE	£35.71	Add to
029	112155000/0	LOW SELF-LOCKING NUT M8	£2.06	Add to
030	1134-6467-01	CABLE HOLDER	£6.55	Add to
031	9959-0620-16	SCREW	£2.32	Add to
032	1134-6317-01	WIRE BRACKET	£8.73	Add to
033	112292102/0	FLANGED HEXAGONAL NUT M6	£2.06	Add to
035	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
036	137038008/0	TRANSMISSION PULLEY BUSH	£9.00	Add to
037	387205001/0	TENSION ARM ASSEMBLY	£46.61	Add to
038	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
039	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
041	1134-3289-02	BELT GUIDE	£21.40	Add to
042	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
043	1134-6414-01	SPRING	£5.73	Add to
044	1134-3377-02	CONTROL ROD	£16.91	Add to
045	1134-4171-01	PIVOT PIN	£17.45	Add to
047	1134-3456-01	BUSH	£6.14	Add to
048	1134-4183-01	COMPRESSION SPRING	£8.73	Add to
051	9924-1035-16	SCREW MF6S M10 x 35	£6.27	Add to
052	9898-1035-16	SCREW 10 x 35	£3.15	Add to
053	387605028/0	TENSION ROLLER	£46.79	Add to
054	112295200/0	HEXAGON NUT M10	£1.79	Add to
055	1134-9058-01	TRANSMISSION BELT	£23.04	Add to
056	9959-0825-16	SCREW FLANGED TE M6SF M8 x 25	£2.06	Add to
057	1134-3913-01	STRUT BRACKET	£17.59	Add to
058	9699-0090-02	WASHER 8.4 x 18 x 1.5	£2.32	Add to
059	112691200/0	HEX-HEAD SCREW M8 x 45	£2.06	Add to
060	1137-0125-01	TRANSAXLE K574F	£2,180.59	Add to
061	9960-0860-12	SCREW M8 x 60	£2.32	Add to
062	387869533/2	BY-PASS HYDRAULIC HOSE	£167.09	Add to
063	118400996/1	FRONT TRANSAXLE (KTM10M)	£1,965.00	Add to
064	112320450/0	1/4 BANJO DRILLED NUT	£8.45	Add to
065	1134-5703-01	FLANGE BEARING UNIT	£24.95	Add to
066	112379511/0	STRAIGHT GREASE NIPPLE M6 x 1	£2.06	Add to
067	9731-1031-22	LOCK NUT M6MF M10	£2.47	Add to
068	9997-1040-16	SCREW M6S 10 x 40	£7.23	Add to
069	387773551/0	SUPPORT BRACKET	£32.99	Add to
070	112692050/0	HEX-HEAD SCREW	£1.91	Add to
071	112146034/0	90 HYDRAULIC COUPLING	£41.44	Add to
072	112692050/0	HEX-HEAD SCREW	£1.91	Add to
073	112692050/0	HEX-HEAD SCREW	£1.91	Add to
074	1134-4014-01	KNOB	£5.19	Add to
075	387735257/1	HYDRAULIC OIL TANK	£126.99	Add to
076	1137-0272-01	TANK CAP	£34.35	Add to
077	1134-5943-01	TANK LOOP	£7.78	Add to
078	9578-0036-01	HOSE CLAMP	£3.41	Add to
079	1134-2779-03	TUBE	£35.71	Add to
080	387869523/1	HYDRAULIC HOSE	£81.53	Add to
081	9578-0023-04	HOSE CLAMP	£5.32	Add to
082	1134-5810-01	HYDRAULIC COUPLING	£17.86	Add to
083	9404-0029-01	O RING 16.36 x 2.21	£5.46	Add to
084	1134-5875-01	HYDRAULIC COUPLING	£71.14	Add to
085	387869527/0	HYDRAULIC HOSE ASSY	£197.87	Add to
086	1134-4948-01	SEAL WASHER 1/4"	£2.59	Add to
087	1134-6042-01	QUICK COUPLING-MALE 1/4"	£32.08	Add to
088	1137-0212-01	HYDRAULIC HOSE L=1210mm	£86.13	Add to
089	112140800/0	SPECIAL F.RUN T.SWIVEL	£76.19	Add to
090	387869531/0	TRASM.LINK HYDR.HOSE ASSY PC-PCH	£99.76	Add to
091	1134-1565-09	SPACER	£13.90	Add to
092	9578-0028-01	TUBE CLAMP	£9.31	Add to
093	119216047/0	HEX-HEAD SCREW M8 X 35	£2.06	Add to
094	137065320/0	FRONT TRANSMISSION RELEASE CABLE	£20.31	Add to
095	9939-0612-16	SCREW M6 x 12	£2.32	Add to
096	112521330/0	WASHER M6 6.4 x 12 x 1.6	£2.06	Add to
097	337774119/0	UNLOCK BRACKET	£16.50	Add to
098	1134-6083-01	CONTROL ROD	£7.27	Add to
099	1134-6084-01	CONTROL BRACKET	£10.09	Add to
100	1134-2790-01	RUBBER GROMMET	£6.95	Add to
105	1134-4015-01	PULL ROD	£11.59	Add to
106	1134-3383-02	KEY (L=51 MM)	£9.41	Add to
107	1134-4844-05	WHEEL HUB ASSEMBLY	£60.24	Add to
109	9545-0116-00	TYRE 16 x 7.50-8	£86.13	Add to
110	187000454/0	WHEEL RIM 5.5" x 8"	£84.77	Add to
111	9545-0500-00	VALVE ASSY.	£5.73	Add to
112	9653-0002-04	CIRCLIP 1"	£3.69	Add to
113	137670203/0	WASHER DEST=45 DINT=25.6	£5.05	Add to
114	1134-5686-01	BEARING BUSH D= 25.4mm	£14.58	Add to
115	9501-0502-00	GREASE JOINT	£8.87	Add to
116	1137-0077-01	LOCKING PIN	£3.81	Add to
117	1134-7465-01	ATTACHMENT HOOK PLATES [LH & RH]	£53.42	Add to
123	1134-2471-01	KEY	£9.41	Add to
124	1134-4844-02	WHEEL HUB ASSEMBLY	£57.52	Add to
125	1134-4796-01	HUB CAP	£5.46	Add to
126	9947-0540-19	SCREW	£2.06	Add to
127	9653-0001-04	CIRCLIP 3/4"	£2.61	Add to
127	9653-0002-04	CIRCLIP 1"	£3.69	Add to
128	1134-0341-01	WASHER	£7.10	Add to
131	9545-0203-00	INNER TUBE 16 x 6.50	£26.18	Add to
