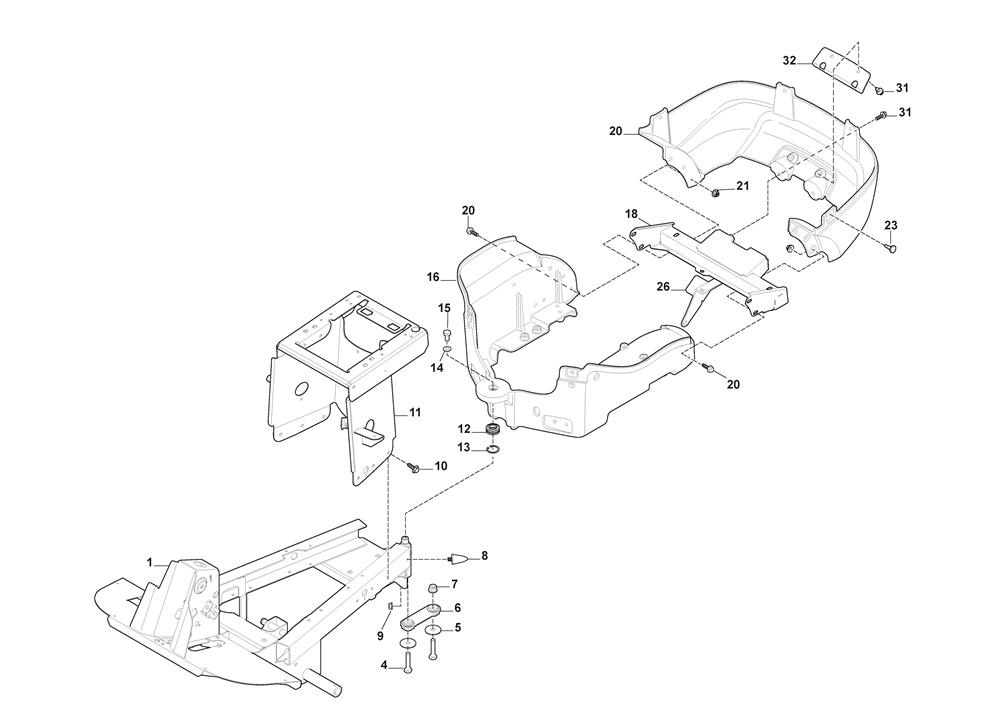

Frame assembly details for Stiga E-Park 220 (2F5828001/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001387800047/0BP PKEL FRONTAL FRAME ASSY£708.88 Add to
004112794900/0HEX-HEAD SCREW M10 x 50£2.06 Add to
0059699-0109-02WASHER 10.5 x 40 x 2£2.32 Add to
0061137-0963-01LINK PLATE£40.71 Add to
0079731-1031-22LOCK NUT M6MF M10£2.47 Add to
0081137-0064-01RUBBER CONE£42.53 Add to
009112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
0109945-0816-16SCREW M8 X 16£2.54 Add to
011387785213/1SEAT BRACKET ASSEMBLY£156.99 Add to
0129547-0008-01BEARING£10.25 Add to
013112610200/0CIRCLIP D=30£1.79 Add to
014112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
015112794110/1SCREW TE M10 x 1.5 L=20£2.18 Add to
016387800049/0FRONTAL REAR FRAME£474.54 Add to
0179959-0825-16SCREW FLANGED TE M6SF M8 x 25£2.06 Add to
018387800043/1REAR SUPPORT FRAME ASSY£207.19 Add to
020387800031/1REAR FRAME REAR SIDE£378.23 Add to
021112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
023127275000/0RUBBER GROMMET FOR BRAKE PEDAL£3.55 Add to
026387773561/0TRANSMISSION BRACKET£26.46 Add to
0319959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
032387547039/0HITCH PLATE£53.69 Add to
