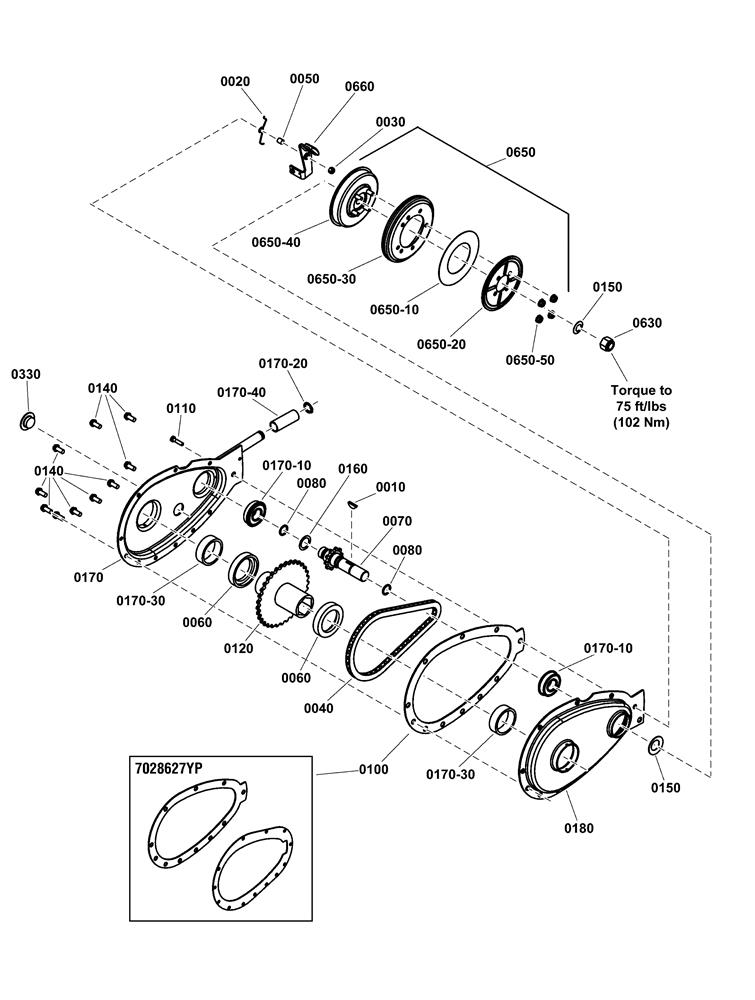

Primary Chain Case

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0010	SI-7010614YP	KEY, WOODRUFF, #5	£3.69	Add to
0020	SI-7072406YP	SPRING, TORSION, RER B	£3.77	Add to
0030	SI-703972	NUT, HEX TOP, 1/4-28	£2.92	Add to
0040	SI-7010941YP	CHAIN, CHAINCASE (100)	£8.87	Add to
0050	SI-7072593YP	SPACER BRAKE ARM PIVOT	£7.09	Add to
0060	SI-7011086YP	WASHER, THRUST, NYLON	£3.86	Add to
0070	SI-7018963YP	DRIVESHAFT	£115.87	Add to
0080	SI-7019260YP	O-RING	£3.01	Add to
0100	SI-7028762YP	GASKET, TRANSMISSION	£15.25	Add to
0110	SI-7091504YP	SCREW, 1/4-28X1	£3.77	Add to
0120	SI-7040355YP	WELD, HUB / SPROCKET	£240.55	Add to
0150	SI-7011121SM	BW, .64X1.125X.028	£3.09	Add to
0160	SI-7027981YP	WASHER, WAVE, .625X.87	£3.77	Add to
0170	SI-7041136YP	WELD, SPROCKET COVER	£68.24	Add to
0170-10	SI-7010756YP	BEARING, BALL	£11.26	Add to
0170-20	SI-7010776YP	RING, 1/2 RETAINING	N/A	POA
0170-30	SI-7010942YP	BEARING, NEEDLE	£9.98	Add to
0170-40	SI-7022785YP	ROLLER	N/A	POA
0330	SI-7011024YP	PLUG	£7.43	Add to
0630	SI-703432	NUT	£3.43	Add to
0650	SI-7600208YP	SMOOTH CLUTCH ASSY	£185.51	Add to
0650-10	SI-7014523YP	WASHER, THRUST	£5.64	Add to
0650-20	SI-7032331YP	PLATE, SMOOTH CLUTCH	£9.30	Add to
0650-30	SI-7600135YP	FRICTION RING ASSY	£66.96	Add to
0650-40	SI-7600142YP	KIT, HUB & CUP	£48.68	Add to
0650-50	SI-703123	NUT	N/A	POA
0660	SI-7052497YP	ASSY, BRAKE LEVER	£10.91	Add to
7028627YP	SI-7052683YP	ASSY, PRI CHAIN CASE	£326.62	Add to
