Parts list

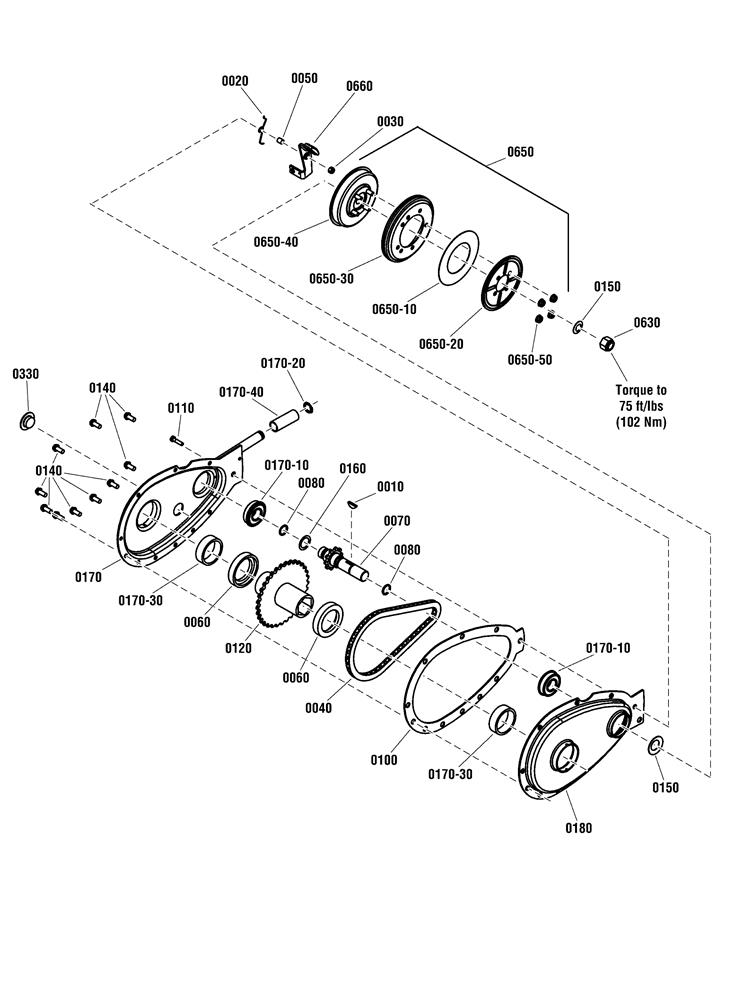

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
Ref | No | Description | Price | |
---|
0001 | SI-7052683YP | ASSY, PRI CHAIN CASE | £326.62 | Add to |
0010 | SI-7010614YP | KEY, WOODRUFF, #5 | £3.69 | Add to |
0020 | SI-7072406YP | SPRING, TORSION, RER B | £3.77 | Add to |
0030 | SI-703972 | NUT, HEX TOP, 1/4-28 | £2.92 | Add to |
0040 | SI-7010941YP | CHAIN, CHAINCASE (100) | £8.87 | Add to |
0050 | SI-7072593YP | SPACER BRAKE ARM PIVOT | £7.09 | Add to |
0060 | SI-7011086YP | WASHER, THRUST, NYLON | £3.86 | Add to |
0070 | SI-7018963YP | DRIVESHAFT | £115.87 | Add to |
0080 | SI-7019260YP | O-RING | £3.01 | Add to |
0100 | SI-7028762YP | GASKET, TRANSMISSION | £15.25 | Add to |
0110 | SI-7091504YP | SCREW, 1/4-28X1 | £3.77 | Add to |
0120 | SI-7040355YP | WELD, HUB / SPROCKET | £240.55 | Add to |
0150 | SI-7011121SM | BW, .64X1.125X.028 | £3.09 | Add to |
0160 | SI-7027981YP | WASHER, WAVE, .625X.87 | £3.77 | Add to |
0170 | SI-7041136YP | WELD, SPROCKET COVER | £68.24 | Add to |
0170-10 | SI-7010756YP | BEARING, BALL | £11.26 | Add to |
0170-20 | SI-7010776YP | RING, 1/2 RETAINING | N/A | POA |
0170-30 | SI-7010942YP | BEARING, NEEDLE | £9.98 | Add to |
0170-40 | SI-7022785YP | ROLLER | N/A | POA |
0330 | SI-7011024YP | PLUG | £7.43 | Add to |
0630 | SI-703432 | NUT | £3.43 | Add to |
0650 | SI-7600208YP | SMOOTH CLUTCH ASSY | £185.51 | Add to |
0650-10 | SI-7014523YP | WASHER, THRUST | £5.64 | Add to |
0650-20 | SI-7032331YP | PLATE, SMOOTH CLUTCH | £9.30 | Add to |
0650-30 | SI-7600135YP | FRICTION RING ASSY | £66.96 | Add to |
0650-40 | SI-7600142YP | KIT, HUB & CUP | £48.68 | Add to |
0650-50 | SI-703123 | NUT | N/A | POA |
0660 | SI-7052497YP | ASSY, BRAKE LEVER | £10.91 | Add to |
