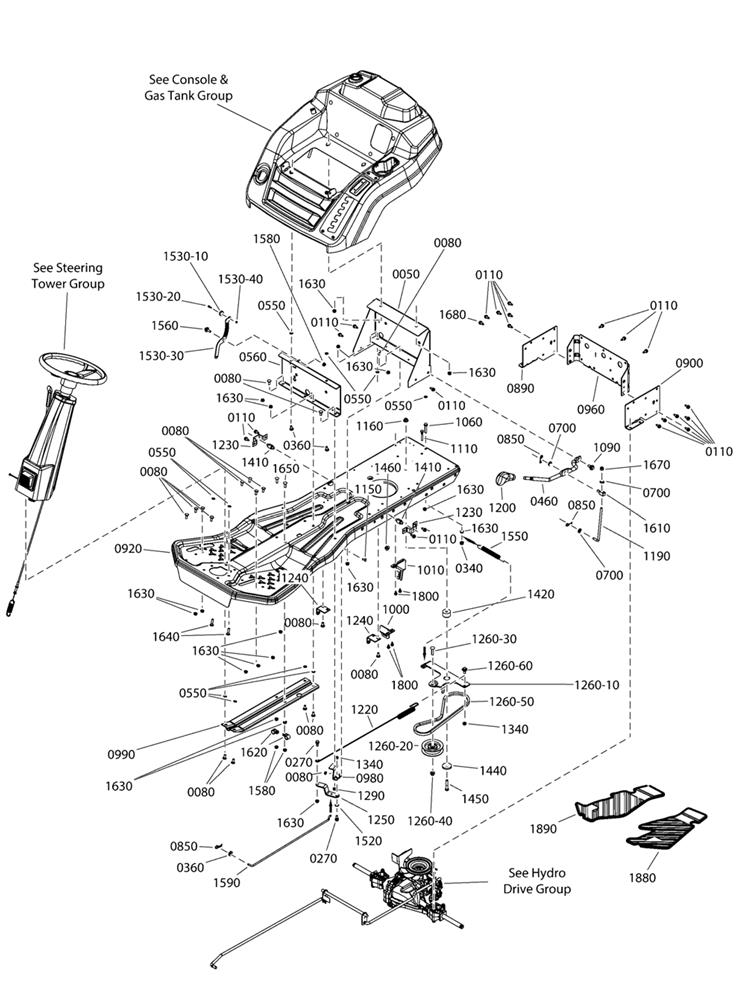

Main Frame Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0080SI-703185SCREW£3.01 Add to
0110SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0270SI-703839BOLT£4.03 Add to
0340SI-703115NUT£2.75 Add to
0360SI-703332WASHER, 1/4£2.75 Add to
0550SI-703297RETAINER, BOLT, 5/16£2.75 Add to
0850SI-703300PIN 3/32 X 1.6£2.75 Add to
1090SI-702315BOLT, SHOULDER£4.88 Add to
1150SI-703841BOLT£2.92 Add to
1160SI-1960339SMNUT-HEX FLANGE .£3.86 Add to
1260-20SI-1728000SMPULLEY-IDLER 03.12 OD£20.53 Add to
1260-40SI-703158NUT£2.92 Add to
1260-50SI-7106207YPTRANS BELT£38.22 Add to
1260-60SI-1732426SMBOLT-SHLDR 5/16-18 0.5£4.62 Add to
1290SI-780285MAHFLN, 1/4C YZ£3.86 Add to
1420SI-1729007SMSPACER-0.387IDX1.50 OD£9.38 Add to
1440SI-1960071SMWASHER-0.375(0.41IDX1.£7.68 Add to
1450SI-703589CAPSCREW, 3/8-16X2£3.26 Add to
1460SI-703893NUT£4.11 Add to
1530-40SI-7091267SMHCLN, #10F BZ£3.18 Add to
1550SI-7013885YPSPRING, CLUTCH/BRAKE£5.90 Add to
1580SI-015X88MANUT FLANGE£3.77 Add to
1630SI-703409NUT£2.75 Add to
1650SI-703483COACH BOLT£3.09 Add to
1670SI-703117NUT£2.75 Add to
1680SI-703985HWST, 5/16C X1/2 BZ£3.18 Add to
1800SI-703054HWST, 1/4C X5/8 YZ£3.01 Add to
