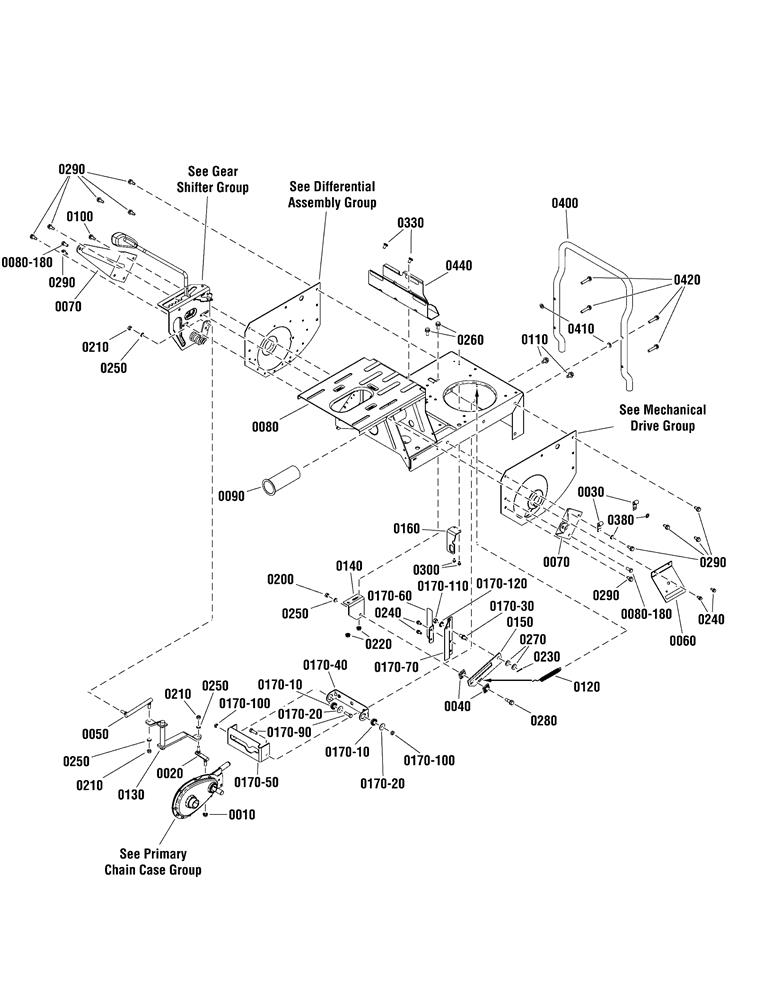

Main Case Assembly

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0010	SI-703123	NUT	N/A	POA
0020	SI-7011018YP	LINK, SHIFT, SHORT	£13.72	Add to
0080-180	SI-703354	SCREW	£3.09	Add to
0120	SI-7013885YP	SPRING, CLUTCH/BRAKE	£5.90	Add to
0170-100	SI-703459	NUT HEX 5/16-24	£3.09	Add to
0170-110	SI-703895	NUT, HEX, 3/8-24	£3.52	Add to
0170-120	SI-703930	WASHER, INT LCK, 3/8	£2.66	Add to
0170-40	SI-7033291YP	COLLAR, YOKE	£42.98	Add to
0210	SI-703331	NUT, 5/16-24	£2.75	Add to
0230	SI-703312	PIN, COTTER, 3/32X.75	£3.32	Add to
0260	SI-703354	SCREW	£3.09	Add to
0290	SI-703949	SCREW-HEX WSHR HD TAPT	£3.01	Add to
0380	SI-703587	WASHER , 5/16	N/A	POA
0400	SI-7036367BMYP	BUMPER, REAR	£194.71	Add to
0410	SI-703350	WASHER, 5/16	£2.75	Add to
0420	SI-704318	SCREW, 5/16- 18X1- 1/2	£6.25	Add to
