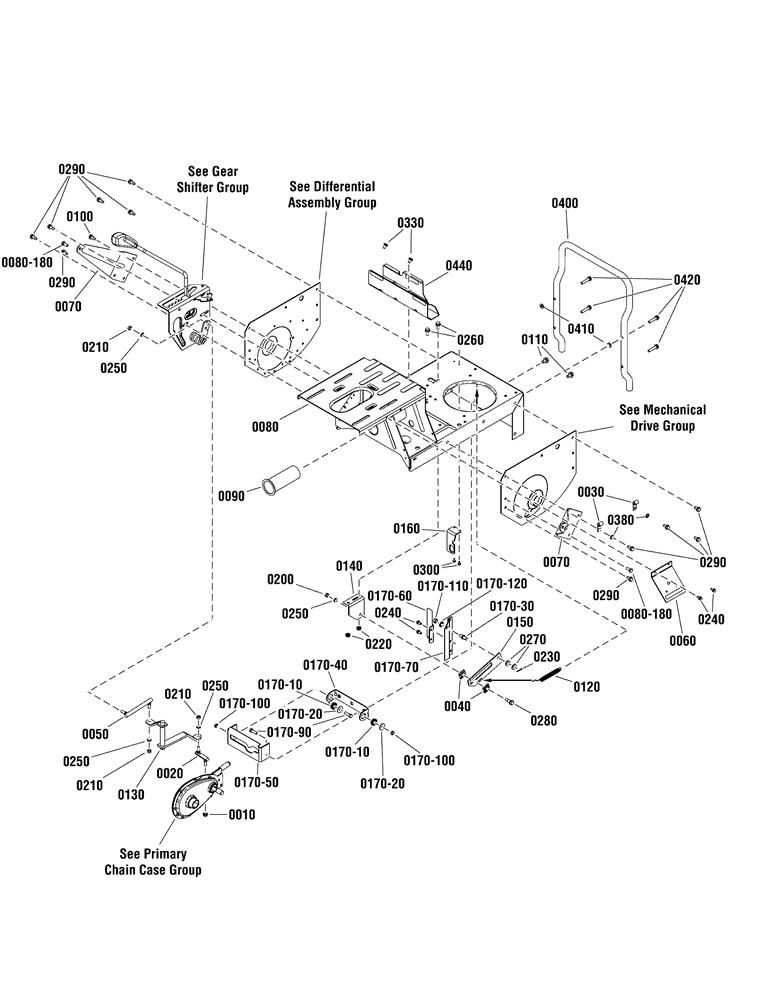

Main Case Assembly

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0010SI-703123NUTN/A POA
0020SI-7011018YPLINK, SHIFT, SHORT£13.72 Add to
0120SI-7013885YPSPRING, CLUTCH/BRAKE£5.90 Add to
0170-100SI-703459NUT HEX 5/16-24£3.09 Add to
0170-110SI-703895NUT, HEX, 3/8-24£3.52 Add to
0170-120SI-703930WASHER, INT LCK, 3/8£2.66 Add to
0170-40SI-7033291YPCOLLAR, YOKE£42.98 Add to
0210SI-703331NUT, 5/16-24£2.75 Add to
0230SI-703312PIN, COTTER, 3/32X.75£3.32 Add to
0260SI-703354SCREW£3.09 Add to
0290SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0380SI-703587WASHER , 5/16N/A POA
0400SI-7036367BMYPBUMPER, REAR£194.71 Add to
0410SI-703350WASHER, 5/16£2.75 Add to
0420SI-704318SCREW, 5/16- 18X1- 1/2£6.25 Add to
