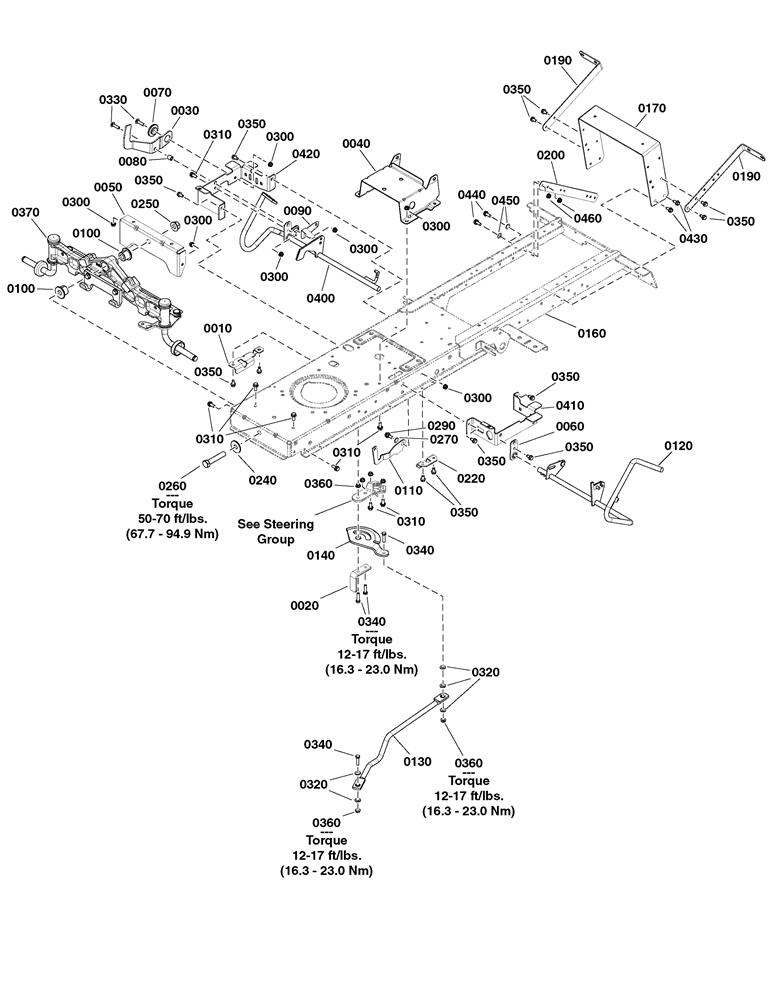

Frame Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0050SI-1727902SMPLATE, AXLE£34.47 Add to
0070SI-1727935SMSPACER-PIVOT 0.330ID 1£5.47 Add to
0080SI-1728024SMSPACER-FOOT PEDAL P M£4.45 Add to
0090SI-1728025BMYPACTUATOR, RMO SWITCH£8.87 Add to
0100SI-1730186SMBUSHING -AXLE PIVOT PM£7.68 Add to
0130SI-1738051YPDRAG LINK ASSEMBLY£50.29 Add to
0140SI-1751110YPGEAR, STEERING£26.82 Add to
0240SI-1960035SMWASHER-0.625(0.64IDX1£4.54 Add to
0260SI-2860744SMCAPSCREW-HEX HD 5/8£10.01 Add to
0290SI-703851BOLT, 5/16-18X1.15£3.94 Add to
0300SI-703409NUT£2.75 Add to
0310SI-703354SCREW£3.09 Add to
0320SI-1919326SMWASHER£3.52 Add to
0340SI-703570CAPSCREW, .31-18X1.25£3.84 Add to
0350SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0360SI-015X88MANUT FLANGE£3.77 Add to
0430SI-703228SCREW#£3.26 Add to
0440SI-703408CAPSCREW, 5/16-18£3.01 Add to
0450SI-703350WASHER, 5/16£2.75 Add to
0460SI-703115NUT£2.75 Add to
