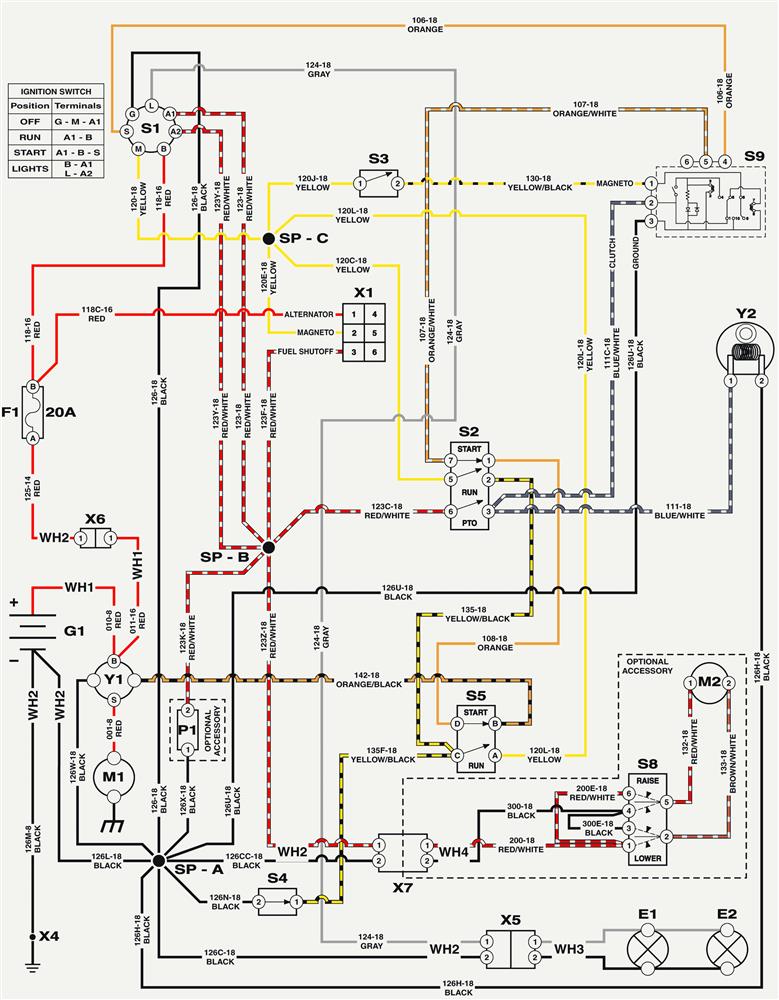

Electrical Schematic

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
M2SI-1761788YPMOTOR-ELECTRIC£115.27 Add to
P1SI-1731185SMHOUR METER£54.80 Add to
S1SI-1761507YPSWITCH- IGNITION£34.07 Add to
S3SI-1720411SMSWITCH-PUSH BUTT£10.06 Add to
S4SI-1714771SMSW INT LOCK SEAT£13.81 Add to
S5SI-7022886YPPEDAL SWITCH£11.43 Add to
S8SI-1761475YPSWITCH£41.24 Add to
S9SI-1761897YPSWITCH£33.28 Add to
Y1SI-1755381YPSOLENOID£19.85 Add to
Y2SI-1760986YPCLUTCH£373.01 Add to
