Drive System - Self Propelled - EURO

Parts list

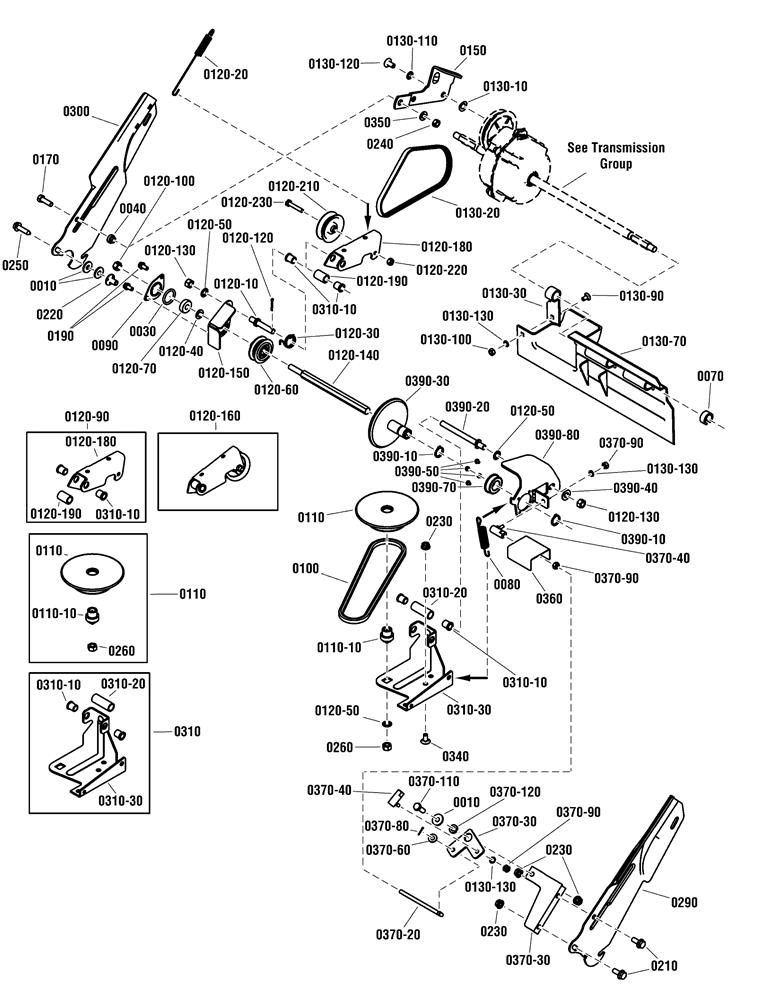

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0080SI-7029025YPSPRING, EXT£4.88 Add to
0090SI-7031809YPHALF, HOLDER, V21, YZ£4.79 Add to
0100SI-7046784YPBELT, STRETCH£24.35 Add to
0110SI-7073528YPDRIVE DISC, STEEL£34.98 Add to
0110-10SI-703971BUSHING£6.15 Add to
0120-100SI-703458NUT, HEX, 3/8-24£2.92 Add to
0120-120SI-703312PIN, COTTER, 3/32X.75£3.32 Add to
0120-130SI-703895NUT, HEX, 3/8-24£3.52 Add to
0120-140SI-7072284YPSHAFT, HEX£17.04 Add to
0120-20SI-7012122YPSPRING, CLUTCH£9.13 Add to
0120-210SI-7012124YPPULLEY, IDLER, V21£13.72 Add to
0120-220SI-703972NUT, HEX TOP, 1/4-28£2.92 Add to
0120-30SI-7012126YPSPRING , V21N/A POA
0120-50SI-703930WASHER, INT LCK, 3/8£2.66 Add to
0120-60SI-7019383YPPULLEY, POLY-V, 2.00 O£50.46 Add to
0120-70SI-7028014YPBEARING, SPHERICAL£19.93 Add to
0130-100SI-703127NUTN/A POA
0130-110SI-703587WASHER , 5/16N/A POA
0130-130SI-703462WASHER, LOCK, 1/4£2.66 Add to
0130-20SI-7012354YPBELT, POLY-V, V21£13.64 Add to
0230SI-703409NUT£2.75 Add to
0250SI-703167SCREW£6.07 Add to
0310-10SI-703973BUSHING£8.62 Add to
0310-20SI-703941SPACER, .65 ODX.500 ID£24.44 Add to
0310-30SI-7033774YPBRACKETN/A POA
0350SI-703350WASHER, 5/16£2.75 Add to
0360SI-7032664YPSHIELD£11.26 Add to
0370-110SI-703408CAPSCREW, 5/16-18£3.01 Add to
0370-120SI-703970SPACER£3.01 Add to
0370-40SI-7015753YPBALL JOINT£7.34 Add to
0390-10SI-703975RETAINING RING, EXT, .£3.26 Add to
0390-30SI-7041855YPDRIVEN DISC, CANTILEVE£72.26 Add to
