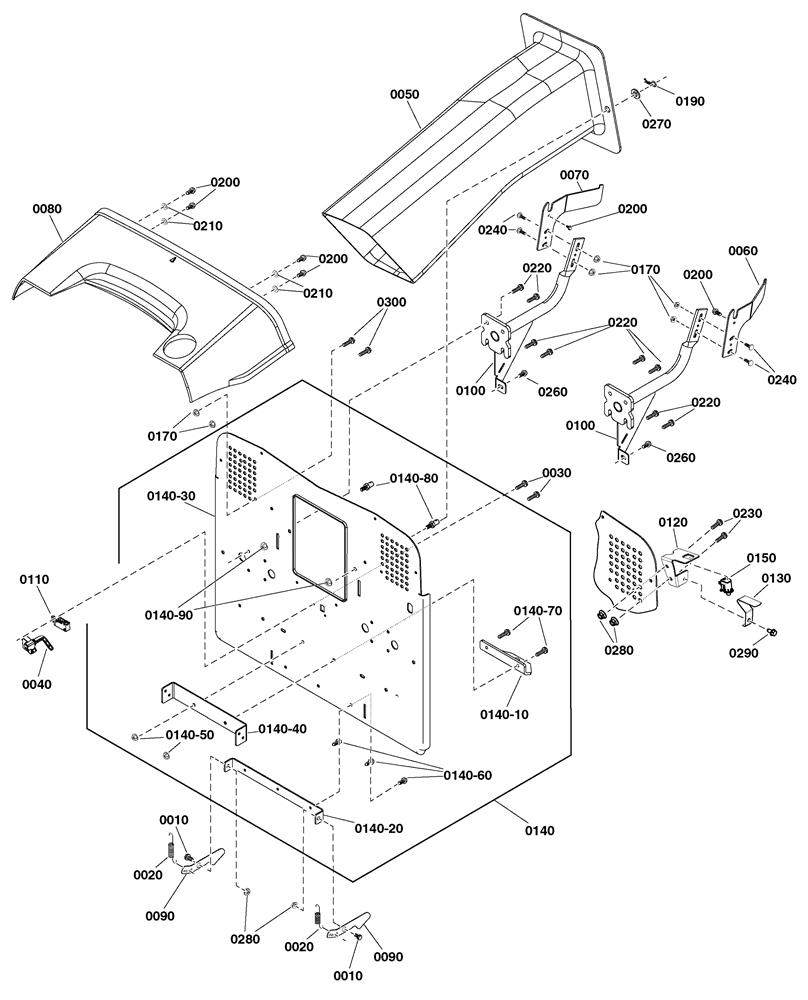

Backplate Group

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0010SI-009X39MABOLT£4.28 Add to
0020SI-165X75MASPRING RETURN£7.60 Add to
0030SI-880760YPSCREW£1.73 Add to
0040SI-885618YPBAG FULL SWITCH£6.07 Add to
0090SI-1758530BMYPLATCH, BAGGER£15.64 Add to
0110SI-84003064SWITCH BAG FULL 310£17.21 Add to
0140-10SI-885862YPKIT, TOWBRKT£21.89 Add to
0140-20SI-885497AYPBRACKET£13.13 Add to
0140-50SI-703409NUT£2.75 Add to
0140-60SI-703228SCREW#£3.26 Add to
0140-70SI-703410BOLT,5/16-18X1£4.08 Add to
0140-80SI-704054PIN£7.43 Add to
0140-90SI-703893NUT£4.11 Add to
0150SI-7023354YPSWITCH, SEAT£9.47 Add to
0170SI-703409NUT£2.75 Add to
0190SI-703300PIN 3/32 X 1.6£2.75 Add to
0200SI-703228SCREW#£3.26 Add to
0210SI-1919326SMWASHER£3.52 Add to
0220SI-703167SCREW£6.07 Add to
0240SI-703185SCREW£3.01 Add to
0260SI-703410BOLT,5/16-18X1£4.08 Add to
0270SI-703853WASHER, 0.516IDX1OD£3.09 Add to
0280SI-703893NUT£4.11 Add to
0290SI-703949SCREW-HEX WSHR HD TAPT£3.01 Add to
0300SI-703354SCREW£3.09 Add to
