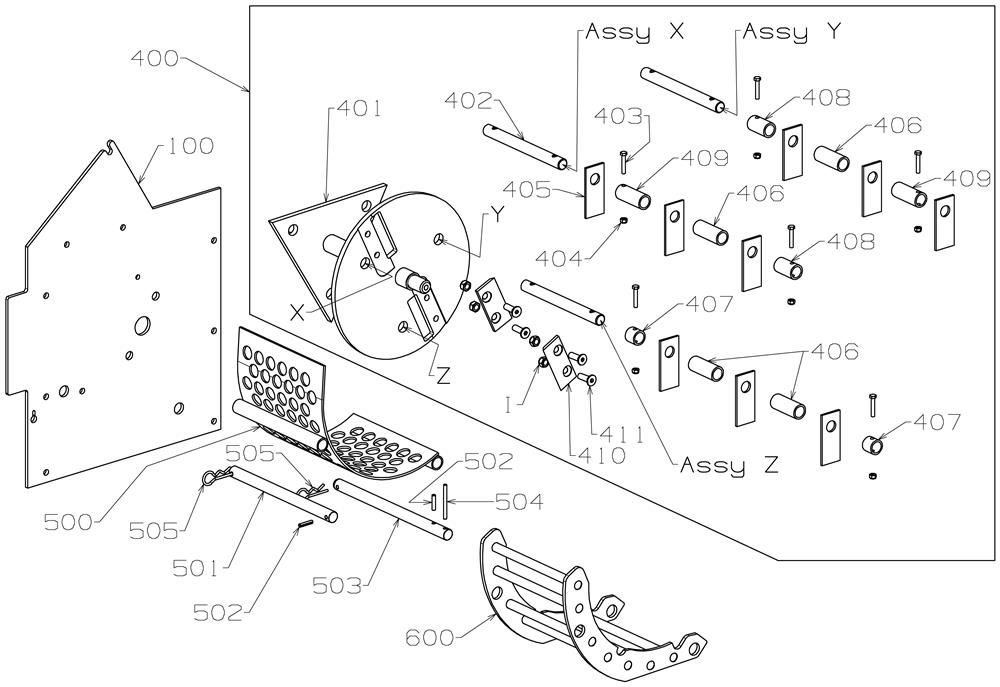

ROTOR - EXPLODED VIEW AFTER ASSEMBLING THE FLAIL RODS

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
400MA-936196ROTA ASSY£234.44 Add to
401MA-536195ROTOR ASSY-B/DRIVE 6.5£102.36 Add to
402MA-536029ROD-SHREDDER ASSY HT£11.45 Add to
403MA-503678ROD BOLT XL5£2.99 Add to
404MA-503511ROD NUT XL 5£0.51 Add to
405MA-536030BLADE SHREDDER£12.19 Add to
406MA-536045SPACER PLAIN£4.48 Add to
407MA-536043SPACER BLADE£5.31 Add to
408MA-536042SPACER DRILLED£5.48 Add to
409MA-536044DRILLED SPACER£4.48 Add to
410MA-536027BLADE 6.5 XL£11.00 Add to
411MA-599501CH BLADE SCREW£2.13 Add to
500MA-536371SCREEN STANDARD£40.08 Add to
501MA-936017ROD-SHREDDER PLATE, REA£15.65 Add to
502MA-503369PIN£2.02 Add to
503MA-936016ROD-SHREDDER PLATE,FRO£14.15 Add to
504MA-031290PIN, TENSION 5.0X 50 ZP£0.81 Add to
505MA-536028CLIP-HAIRPIN, 3MM SHRED£1.38 Add to
600MA-929304BAR GR XL5£100.19 Add to
