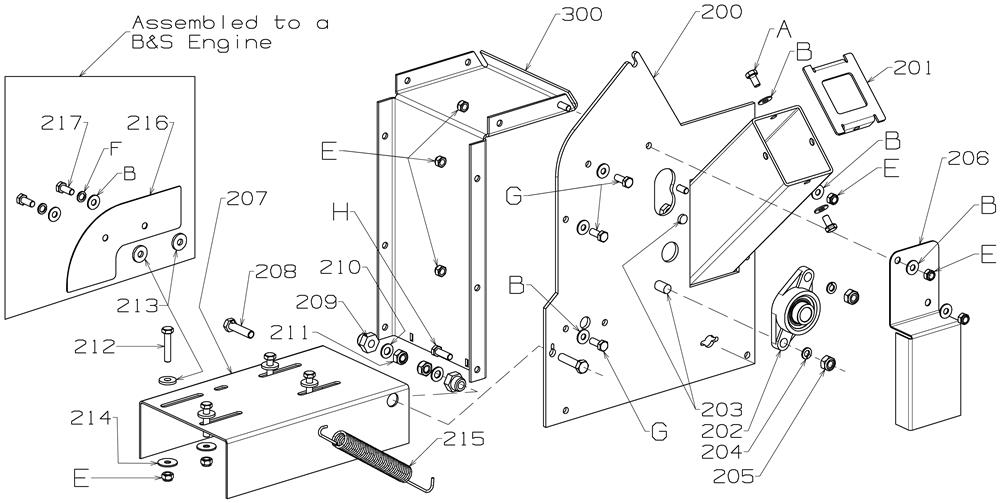

RH SIDE - EXPLODED VIEW

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00BMA-501606WASHER£2.02 Add to
00EMA-501793NYLOC NUT M8£0.73 Add to
00FMA-503747WASHER£0.53 Add to
00GMA-501597SCREW M8X20£0.59 Add to
200MA-936378PLATE ASSY-SIDE, RH V2£191.82 Add to
201MA-536375RESTRICTOR INFEED TUBE£13.36 Add to
202MA-503751BEARING£21.49 Add to
207MA-936562PLATE-MOUNT, ENGINE 6.5£45.38 Add to
208MA-503731BOLT, HEX M10 X 40 SPEC£2.07 Add to
209MA-936035BUSH-PIVOT, ENGINE SHR£6.89 Add to
210MA-501704WASHER£0.59 Add to
211MA-503672NUT NYLOC M10£2.02 Add to
212MA-501843SCREW, SET M8 X 40 HEX£0.92 Add to
213MA-503872WASHER FLT£1.71 Add to
214MA-503746WASHER, FLT 8X25X1.6MM£0.59 Add to
215MA-536008SPRING£15.85 Add to
