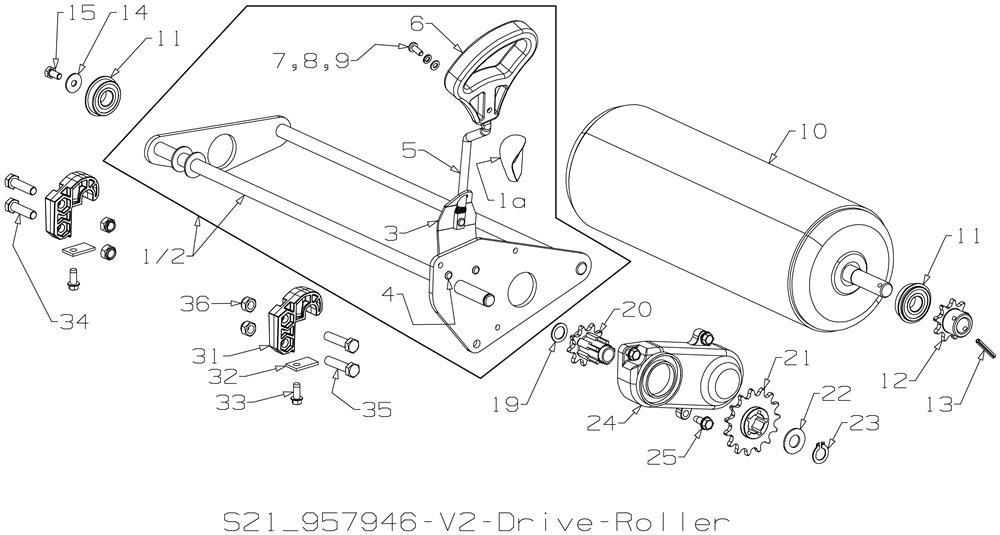

REAR ROLLER ASSEMBLY

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-957351	FRAME ASS REAR 21 RRSP	£54.83	Add to
001A	MA-581729	KNOB-HEIGHT, LEVER ADJUSTER	£2.78	Add to
003	MA-573849	SPRING-LEAF, 2MM	£6.27	Add to
004	MA-503373	RIVET	£1.00	Add to
010	MA-557358	ROLLER ASS RRSP21	£168.38	Add to
011	MA-503820	BEARING ROLLER 2003	£20.75	Add to
012	MA-557278	SPROCKET ROLLER 2003	£35.93	Add to
013	MA-503042	PIN	£2.02	Add to
015	MA-501959	SET SCREW	£0.53	Add to
019	MA-503301	WASHER	£3.12	Add to
020	MA-957212	SPROCKET 9T DR	£32.15	Add to
021	MA-557307	SPROCK INT	£51.73	Add to
023	MA-503293	CIRCLIP	£1.38	Add to
024	MA-557209	CHAIN COVER ROT ROL	£6.51	Add to
025	MA-501599	SCREW	£1.52	Add to
031	MA-557338	ROLLER BRACK	£7.51	Add to
032	MA-557340	PLATE RETAIN BRA	£3.11	Add to
033	MA-501599	SCREW	£1.52	Add to
034	MA-501685	BOLT M8 X 30	£0.87	Add to
036	MA-501793	NYLOC NUT M8	£0.73	Add to
