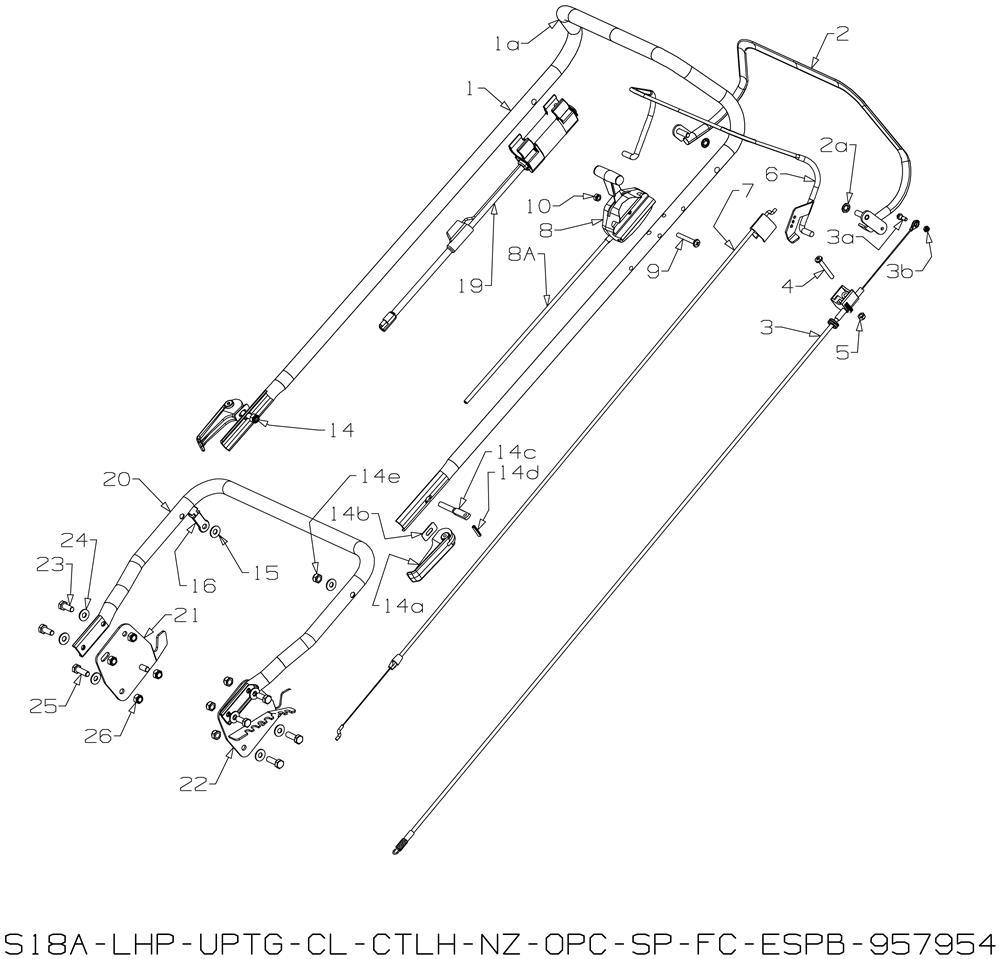

HANDLE ASSEMBLY

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-767687HANDLE & SLEEVE E/S OP£49.81 Add to
002MA-982161CLUTCH BAIL£24.48 Add to
002AMA-501365CLIP£0.63 Add to
003MA-765435CABLE-CLUTCH,THUMB WHE£25.22 Add to
003AMA-502237BOLT, HEX FL HEAD SHOULDER£12.86 Add to
003BMA-502238NUT, M5 HEX NYLOCX5TH£0.51 Add to
004MA-503604SCREW, PAN M 6X45 POZ£0.91 Add to
005MA-501764NUT REPLACE£2.02 Add to
006MA-981740BAIL HANDLE FLAT£17.80 Add to
007MA-582523CABLE-ENGINE OPC,PUSH£16.14 Add to
008MA-583460RRSP HONDA THROTTLE CABLE£21.49 Add to
009MA-503508SCREW, PAN M6 X 55 POZ£1.14 Add to
010MA-501764NUT REPLACE£2.02 Add to
014AMA-582419LEVER-HANDLE LOCKING M£4.28 Add to
014BMA-016777WASHER£0.81 Add to
014CMA-580690STUD£2.21 Add to
014DMA-503369PIN£2.02 Add to
014EMA-501793NYLOC NUT M8£0.73 Add to
015MA-501606WASHER£2.02 Add to
016MA-581527RETAINER-CLUTCH CABLE£0.81 Add to
020MA-981257LOWER HANDLE£13.40 Add to
021MA-981643PLATE-SIDE,RH P/C BLAC£13.40 Add to
022MA-981644SIDE PLATE£17.67 Add to
023MA-501597SCREW M8X20£0.59 Add to
024MA-501606WASHER£2.02 Add to
026MA-501793NYLOC NUT M8£0.73 Add to
