Handle

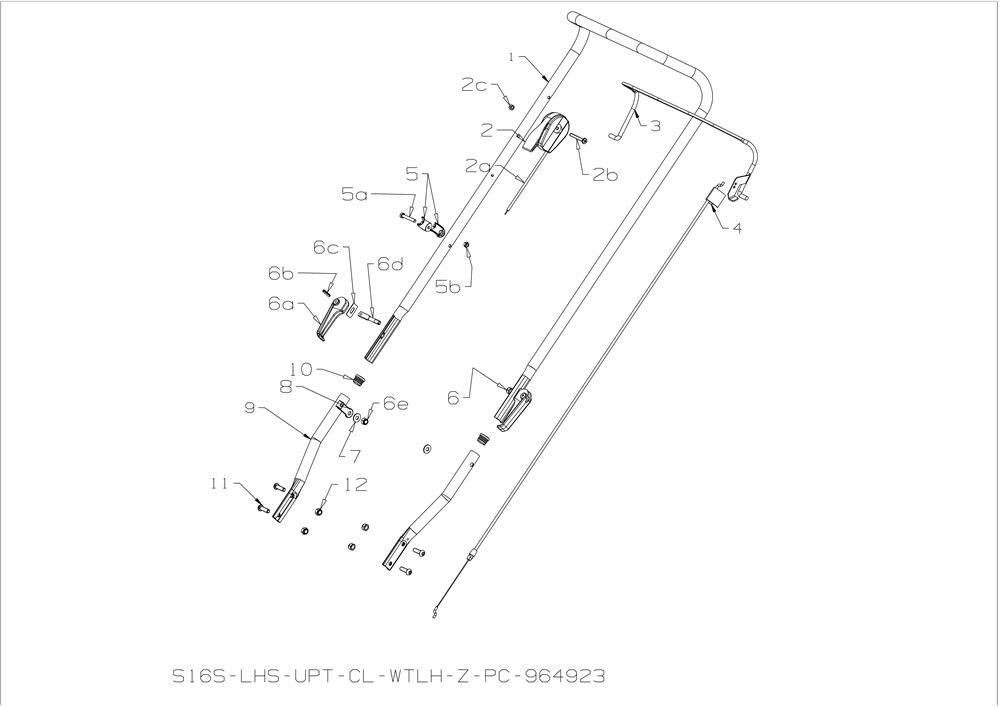

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001MA-974429UPPER HANDLE 150STL£34.97 Add to
001AMA-964490HANDLE UPP 150£22.90 Add to
002AMA-583458CONTROL - THROTTLE£16.72 Add to
002BMA-503604SCREW, PAN M 6X45 POZ£0.91 Add to
002CMA-501764NUT REPLACE£2.02 Add to
003MA-981740BAIL HANDLE FLAT£17.80 Add to
004MA-581658OPC CABLE£31.28 Add to
005MA-703856COMFORT START KIT£16.55 Add to
005AMA-503794SCREW, SET M6X40 (HT4.6)£0.53 Add to
005BMA-501764NUT REPLACE£2.02 Add to
006MA-980456CAM LOCK ASSY£9.75 Add to
006AMA-980456CAM LOCK ASSY£9.75 Add to
006BMA-50069PIN (OBSOLETE) (OBSOLETE)N/A
006CMA-016777WASHER£0.81 Add to
006EMA-501793NYLOC NUT M8£0.73 Add to
007MA-501606WASHER£2.02 Add to
008MA-581527RETAINER-CLUTCH CABLE£0.81 Add to
009MA-964491HANDLE LOW 150£12.69 Add to
009AMA-980692HANDLE£8.17 Add to
010MA-503319CAP£0.81 Add to
011MA-502107SCREW, SET M8 X 20 BTN/HD£0.53 Add to
012MA-501793NYLOC NUT M8£0.73 Add to
