GEARBOX & BELT

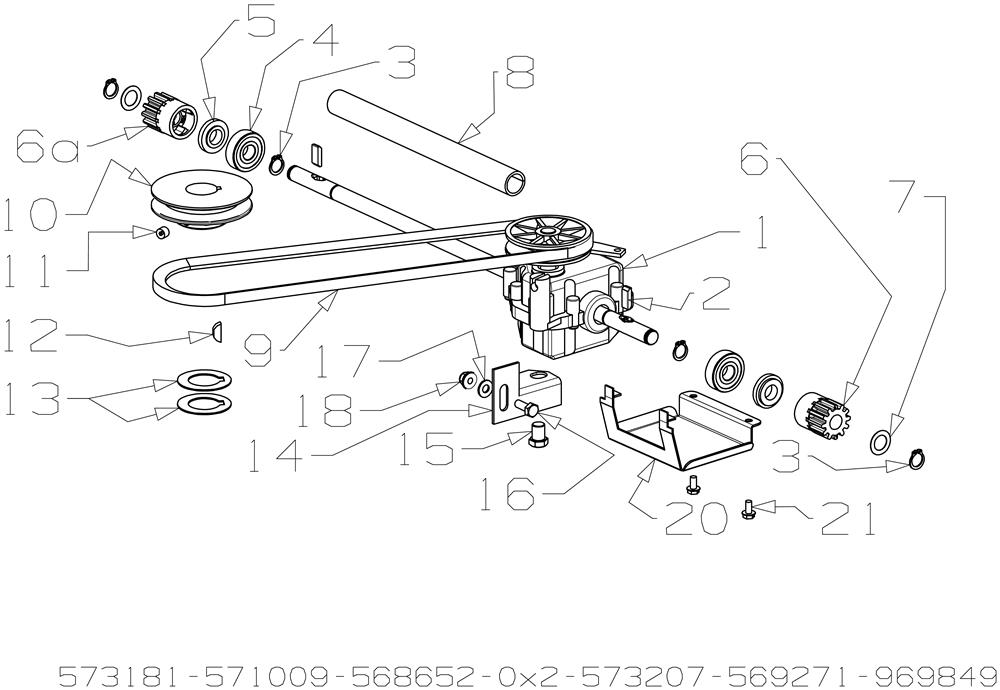

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-573181	800ST GEARBOX	£149.23	Add to
002	MA-581092	PAWL	£2.65	Add to
003	MA-503759	CIRCLIP D=12	£2.02	Add to
004	MA-501213	BEARING	£16.87	Add to
005	MA-581093	CAP 900/950SP	£10.04	Add to
006	MA-569178	PINION LH	£28.46	Add to
006A	MA-569179	PINION RH	£28.46	Add to
007	MA-503102	WASHER	£0.81	Add to
009	MA-573785	BELT-V HC VEXTRA XPZ 9	£27.84	Add to
011	MA-503386	GRUB SCREW (M8X8)	£0.59	Add to
012	MA-503363	KEY	£0.59	Add to
014	MA-573207	MOUNT-GEARBOX 540 SP Z	£3.36	Add to
015	MA-503955	SCREW,SET M 10X 12 HEX	£1.19	Add to
016	MA-501702	SCREW, SET M6X16 HEX	£0.59	Add to
017	MA-501703	WASHER FLT 6X14 X 1.2 Z	£0.47	Add to
018	MA-503973	NUT, M6 HEX NYLOC FLA	£0.59	Add to
020	MA-569271	WEAR PLATE-G/BOX 21"	£8.59	Add to
021	MA-503630	SCREW	£0.95	Add to
