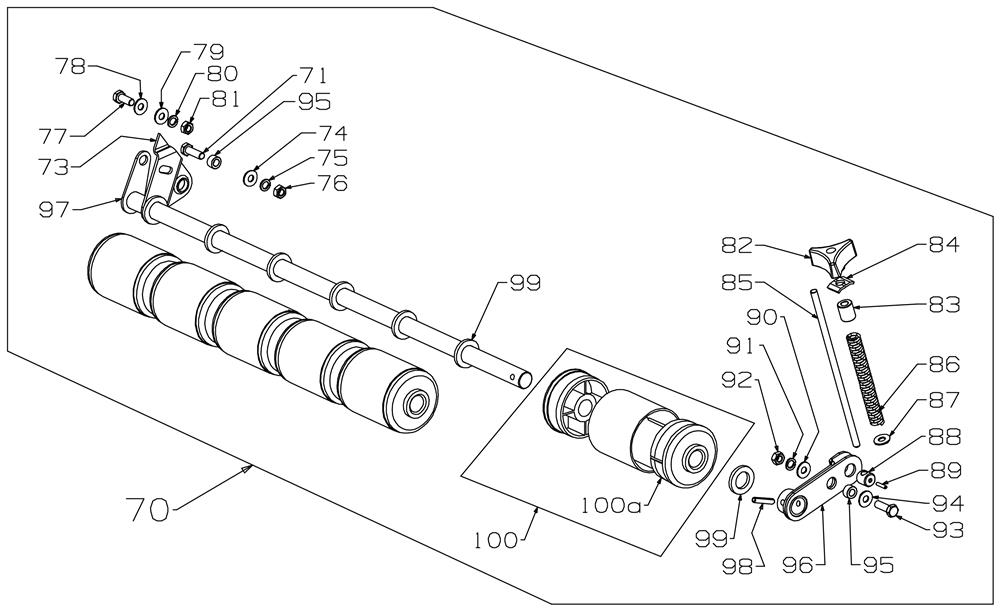

FRONT ROLLER

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
070	MA-005015	FRONT ROLLER COMP 660	£168.50	Add to
073	MA-004983	BRACKET RH FRONT ROLL	£8.17	Add to
074	MA-501606	WASHER	£2.02	Add to
075	MA-503747	WASHER	£0.53	Add to
076	MA-501602	NUT, M8 HEX ZP	£0.53	Add to
077	MA-501597	SCREW M8X20	£0.59	Add to
078	MA-501606	WASHER	£2.02	Add to
079	MA-501606	WASHER	£2.02	Add to
080	MA-503747	WASHER	£0.53	Add to
081	MA-501602	NUT, M8 HEX ZP	£0.53	Add to
082	MA-574230	KNOB INSERT	£3.90	Add to
083	MA-031910	KNOB SPACER	£2.99	Add to
084	MA-004973	PLATE	£1.42	Add to
085	MA-004988	ADJ SPINDLE	£4.86	Add to
086	MA-004691	SPRING	£3.20	Add to
087	MA-501606	WASHER	£2.02	Add to
088	MA-004990	SPINDLE TRUNNION CAM	£7.22	Add to
090	MA-501606	WASHER	£2.02	Add to
091	MA-503747	WASHER	£0.53	Add to
092	MA-501602	NUT, M8 HEX ZP	£0.53	Add to
094	MA-501606	WASHER	£2.02	Add to
095	MA-004991	PIVOT FRONT ROLLER	£3.03	Add to
096	MA-004984	ADJUSTING BRACKET	£15.65	Add to
097	MA-004978	F/ROLLER SPINDLE/ASSY	£33.89	Add to
099	MA-501432	WASHER	£2.02	Add to
100A	MA-005478	END CAP	£10.58	Add to
