DRIVE ASSEMBLY

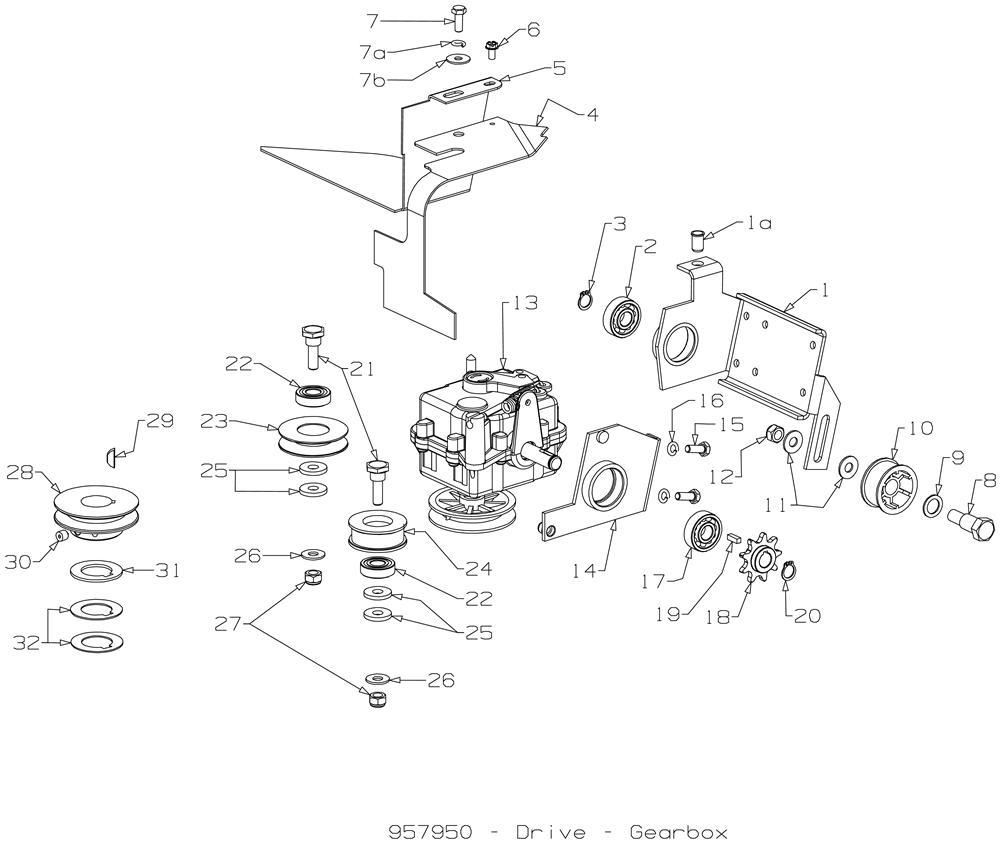

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-957279	GBOX SUPP RH RRSP06	£23.44	Add to
001A	MA-501040	NUT,M6 NUT SERT 9658-	£0.81	Add to
002	MA-501213	BEARING	£16.87	Add to
003	MA-503759	CIRCLIP D=12	£2.02	Add to
006	MA-503630	SCREW	£0.95	Add to
007	MA-503223	SCREW M6 X 16	£1.14	Add to
008	MA-557300	STUD TENSIONER	£5.93	Add to
009	MA-503301	WASHER	£3.12	Add to
010	MA-557067	PULLEY	£5.89	Add to
011	MA-501606	WASHER	£2.02	Add to
012	MA-501793	NYLOC NUT M8	£0.73	Add to
013	MA-557268	GEAR BOX RRSP 2006	£129.91	Add to
014	MA-757281	SUPPORT LH	£27.96	Add to
015	MA-503223	SCREW M6 X 16	£1.14	Add to
017	MA-501213	BEARING	£16.87	Add to
018	MA-557306	SPROCKET 9T GBOX OUT	£37.04	Add to
019	MA-503873	KEY 4 X 4 X 12	£0.86	Add to
020	MA-503759	CIRCLIP D=12	£2.02	Add to
021	MA-557317	STUD-IDLER PULLEY	£5.35	Add to
022	MA-503901	BEARING	£16.88	Add to
023	MA-557316	PULLEY V IDLER	£22.61	Add to
024	MA-573382	PULLEY IDLER SP VAR	£18.83	Add to
025	MA-503872	WASHER FLT	£1.71	Add to
026	MA-501606	WASHER	£2.02	Add to
027	MA-501793	NYLOC NUT M8	£0.73	Add to
029	MA-503363	KEY	£0.59	Add to
030	MA-503386	GRUB SCREW (M8X8)	£0.59	Add to
031	MA-569552	SPACER PULLEY ENGINE	£3.11	Add to
