DECK & WHEELS

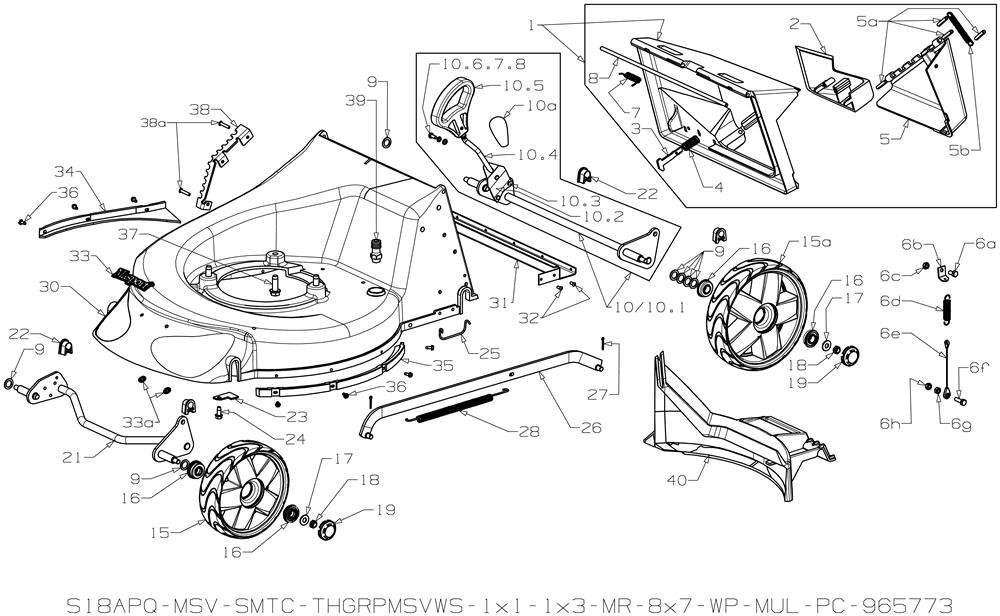

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-782200	FLAP	£39.41	Add to
002	MA-580602	HANDLE	£2.29	Add to
003	MA-981650	FLAP LATCH	£9.04	Add to
004	MA-581106	FLAP LATCH SPRING	£1.14	Add to
005	MA-581528	FLAP SPRING	£2.02	Add to
006	MA-581743	FLAP ROD	£2.65	Add to
009	MA-503301	WASHER	£3.12	Add to
010	MA-969398	AXLE ASSY-REAR, 18" AL C	£34.34	Add to
010.2	MA-580649	LEAF SPRING	£4.86	Add to
010.3	MA-503373	RIVET	£1.00	Add to
010A	MA-581729	KNOB-HEIGHT, LEVER ADJUSTER	£2.78	Add to
015	MA-579195	WHEEL SPOKED 150MM	£22.36	Add to
015A	MA-579197	WHEEL 200MM 18 SER	£29.87	Add to
016	MA-551212	WHEEL BEARING	£5.15	Add to
017	MA-501606	WASHER	£2.02	Add to
018	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
019	MA-579198	HUB CAP BUTTON SPOKED	£0.92	Add to
021	MA-983246	FRONT AXLE	£27.79	Add to
022	MA-580030	AXLE BUSH	£2.02	Add to
023	MA-980564	AXLE PLATE	£0.92	Add to
024	MA-501599	SCREW	£1.52	Add to
025	MA-580225	AXLE RETAINING CLIP	£0.81	Add to
026	MA-980404	ROD ASSY CON	£13.98	Add to
027	MA-501365	CLIP	£0.63	Add to
028	MA-581463	CTR BALANCE SPRING	£6.89	Add to
029	MA-503783	WASH PORT	£4.03	Add to
031	MA-583267	BRACE REAR	£12.61	Add to
033	MA-567406	MASPORT NAMEPLATE 13 ON	£5.19	Add to
033A	MA-503150	CLIP STARLOCK 5 DIA	£0.63	Add to
034	MA-581525	PLATE	£7.30	Add to
035	MA-581524	PLATE	£7.34	Add to
036	MA-503630	SCREW	£0.95	Add to
037	MA-580453	SCREW	£2.13	Add to
038	MA-573582	HEIGHT QUAD 800	£14.23	Add to
039	MA-503200	RIVET-POP 4.8DIAX12.7	£0.51	Add to
