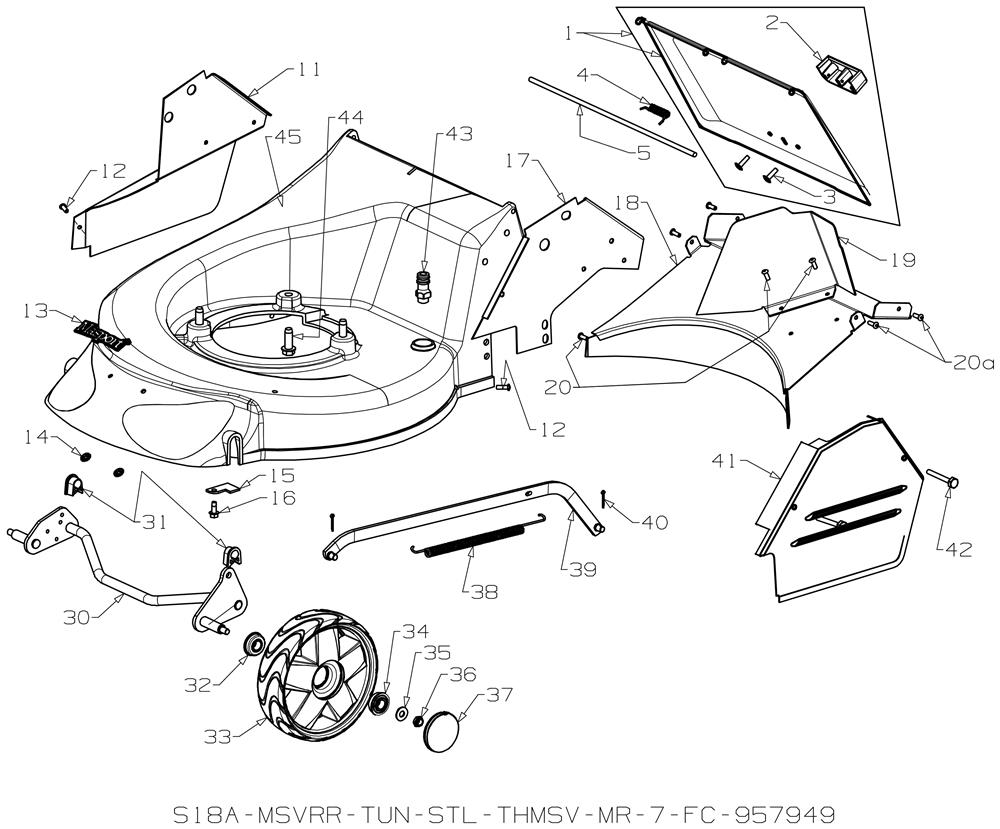

DECK ASSEMBLY & FRONT WHEELS

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-781477	FLAP STEEL	£30.12	Add to
002	MA-580602	HANDLE	£2.29	Add to
003	MA-503650	SCREW	£0.95	Add to
004	MA-564275	SPRING-FLAP,STL 18"/20	£1.80	Add to
005	MA-581743	FLAP ROD	£2.65	Add to
011	MA-957311	COVER-SIDE,RH TTNM	£23.65	Add to
013	MA-567406	MASPORT NAMEPLATE 13 ON	£5.19	Add to
015	MA-980564	AXLE PLATE	£0.92	Add to
016	MA-501599	SCREW	£1.52	Add to
018	MA-957270	PLATE	£66.11	Add to
019	MA-957273	CHUTE RRSP 06/7	£16.01	Add to
030	MA-983247	AXLE ASSY-FRONT, 175MM	£28.26	Add to
031	MA-580030	AXLE BUSH	£2.02	Add to
032	MA-551212	WHEEL BEARING	£5.15	Add to
033	MA-579196	WHEEL 175MM 18 SER	£25.73	Add to
034	MA-551212	WHEEL BEARING	£5.15	Add to
035	MA-501606	WASHER	£2.02	Add to
036	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
037	MA-579198	HUB CAP BUTTON SPOKED	£0.92	Add to
038	MA-957251	CONNECTING ROD RRSP	£20.87	Add to
039	MA-581463	CTR BALANCE SPRING	£6.89	Add to
040	MA-501056	COTTER PIN	£0.47	Add to
043	MA-503783	WASH PORT	£4.03	Add to
044	MA-580453	SCREW	£2.13	Add to
