DECK

Parts list

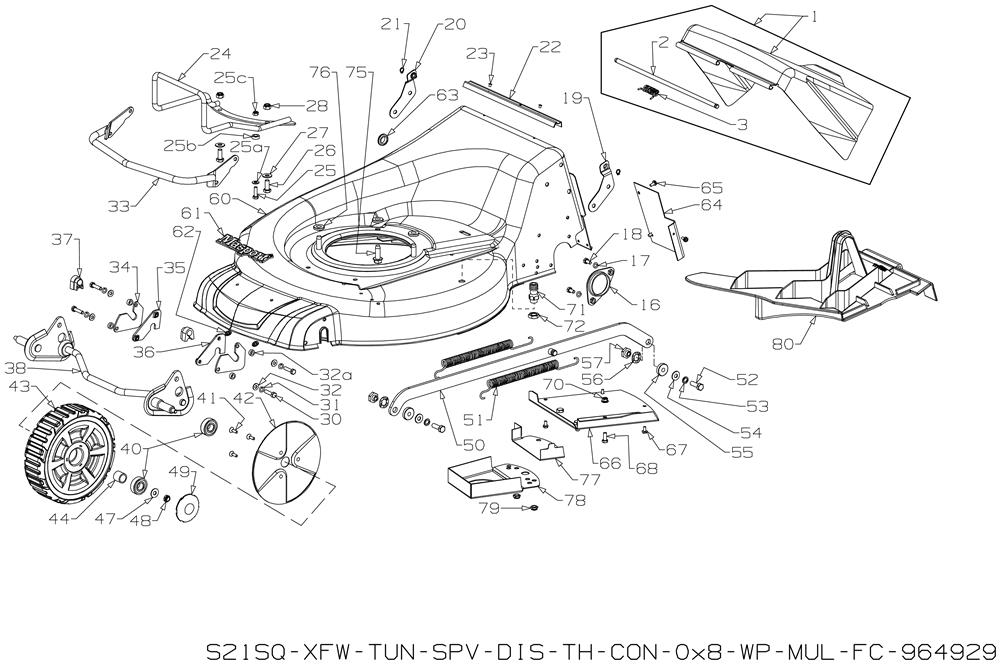

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-764454	FLAP ASSY-STEEL CONTRA	£49.49	Add to
003	MA-579213	SPRING-FLAP, 19" STL ZP	£2.13	Add to
016	MA-581178	AXLE RETAINER	£6.60	Add to
018	MA-501959	SET SCREW	£0.53	Add to
019	MA-579209	BRACKET FLAP LH	£4.28	Add to
020	MA-579210	BRACKET FLAP RH	£4.28	Add to
024	MA-974518	GUARD-BUMPER,ASSY ENG	£17.59	Add to
025	MA-501600	SCREW	£0.51	Add to
025A	MA-501703	WASHER FLT 6X14 X 1.2 Z	£0.47	Add to
025C	MA-501764	NUT REPLACE	£2.02	Add to
027	MA-501606	WASHER	£2.02	Add to
028	MA-501793	NYLOC NUT M8	£0.73	Add to
032	MA-501703	WASHER FLT 6X14 X 1.2 Z	£0.47	Add to
033	MA-974110	BUMPER 21 CONTR	£27.14	Add to
034	MA-574120	PLATE RET INNER	£6.43	Add to
035	MA-574122	PLATE RET RH	£10.79	Add to
036	MA-574121	PLATE INNER FRT LH	£10.79	Add to
037	MA-580030	AXLE BUSH	£2.02	Add to
038	MA-565150	AXLE ASSY-FRONT,CONTR	£50.53	Add to
040	MA-567564	WHEEL BEARING 21 CONT	£16.39	Add to
041	MA-502267	SCREW,CSK M5X12 ALLE	£1.28	Add to
042	MA-574426	INNER WHEEL COVER CONTR	£2.74	Add to
043	MA-764670	WHEEL 200X58MM CONT FR	£103.18	Add to
044	MA-564039	WHEEL SPACER OD19X18L	£16.48	Add to
047	MA-501606	WASHER	£2.02	Add to
048	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
049	MA-567637	HUB CAP CONTRACTOR BLK	£2.13	Add to
050	MA-565153	ROD-CONNECTING,21" LC	£22.23	Add to
051	MA-569035	SPRING	£7.34	Add to
053	MA-503747	WASHER	£0.53	Add to
054	MA-501606	WASHER	£2.02	Add to
055	MA-583448	SPACER-BASE,ENG GXV160	£3.46	Add to
056	MA-580693	WASHER WAVY 13,4X2.5	£1.89	Add to
057	MA-574208	PIVOT NUT	£1.56	Add to
060	MA-774091	CONTRACTOR STEEL DECK	£307.31	Add to
061	MA-581240	NAMEPLATE	£6.35	Add to
062	MA-503150	CLIP STARLOCK 5 DIA	£0.63	Add to
064	MA-574249	TUNNEL-GBOX CVR 21"STL	£16.51	Add to
065	MA-503630	SCREW	£0.95	Add to
066	MA-964018	COV BELT 21 ST	£28.08	Add to
067	MA-503630	SCREW	£0.95	Add to
068	MA-501702	SCREW, SET M6X16 HEX	£0.59	Add to
070	MA-503973	NUT, M6 HEX NYLOC FLA	£0.59	Add to
071	MA-503783	WASH PORT	£4.03	Add to
075	MA-580453	SCREW	£2.13	Add to
076	MA-503419	WASHER	£0.87	Add to
077	MA-567413	COVER-BELT,SPV EXTN SY	£20.99	Add to
078	MA-567412	COVER-BELT, SPV 21" SYN	£19.99	Add to
079	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
080	MA-773389	MULCH INSERT 21 CONTR	£23.19	Add to
