DECK

Parts list

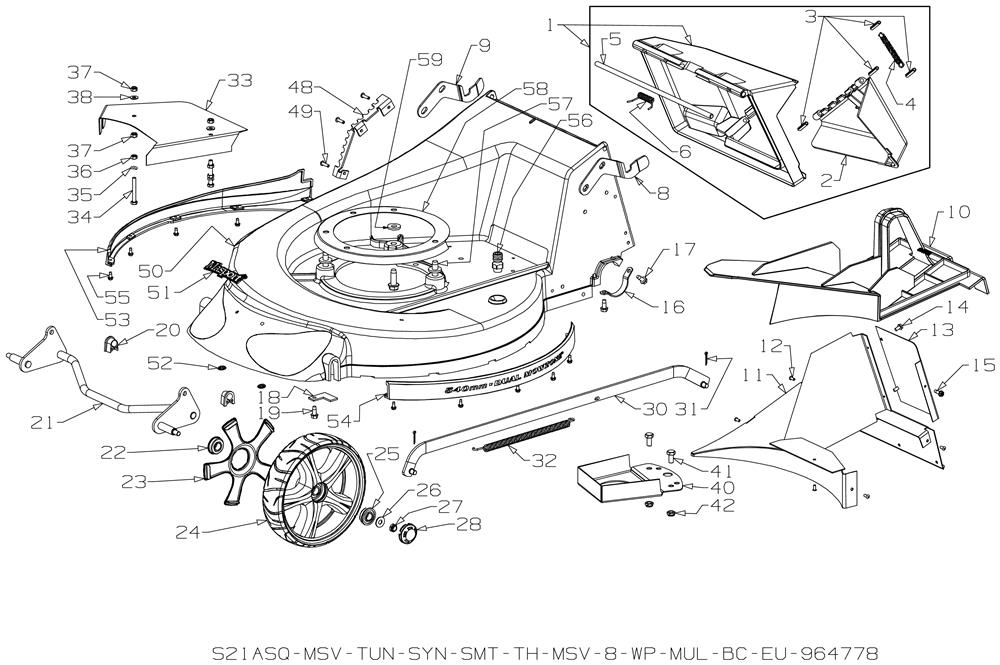

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-782414	SMART CHUTE	£48.46	Add to
002	MA-571095	FLAP-DOOR SIDE SMART C	£14.49	Add to
003	MA-581676	PIN, TENSION 6.0 X 3	£1.33	Add to
004	MA-581648	SPRING-FLAP SM CHUTE	£2.13	Add to
005	MA-583312	WIRE-FLAP PIVOT 325X8	£4.32	Add to
006	MA-583343	SPRING TORQUE	£2.13	Add to
008	MA-567399	BRACKET-MOUNT CATCHER, L	£13.36	Add to
009	MA-567400	BRACKET-MOUNT CATCH, R	£13.36	Add to
010	MA-573059	MULCH PLUG 800	£29.71	Add to
011	MA-967244	TUNNEL ASSY-21" SP BLK	£66.51	Add to
013	MA-573182	TUNNEL-GBOX CVR 21" ALI	£10.58	Add to
014	MA-503630	SCREW	£0.95	Add to
016	MA-980586	AXLE RETAINER	£2.35	Add to
017	MA-501599	SCREW	£1.52	Add to
018	MA-565184	PLATE-RETAINER,AXLE 21	£2.33	Add to
019	MA-501599	SCREW	£1.52	Add to
020	MA-580030	AXLE BUSH	£2.02	Add to
021	MA-983305	AXLE ASSY	£26.25	Add to
022	MA-551212	WHEEL BEARING	£5.15	Add to
023	MA-579205	WHEEL COVER	£2.49	Add to
024	MA-573706	200MM SP MULCHER WHEEL	£29.87	Add to
025	MA-551212	WHEEL BEARING	£5.15	Add to
026	MA-501606	WASHER	£2.02	Add to
027	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
028	MA-579204	BUTTON HUB CAP	£0.63	Add to
030	MA-573814	CONN ROD 800	£14.65	Add to
031	MA-501056	COTTER PIN	£0.47	Add to
032	MA-573844	SPRING	£6.51	Add to
033	MA-973662	COVER	£20.57	Add to
037	MA-501764	NUT REPLACE	£2.02	Add to
038	MA-501703	WASHER FLT 6X14 X 1.2 Z	£0.47	Add to
040	MA-567412	COVER-BELT, SPV 21" SYN	£19.99	Add to
042	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
048	MA-573582	HEIGHT QUAD 800	£14.23	Add to
050	MA-764100	HSG ASSY-ALIT21"FS SYN	£315.53	Add to
051	MA-567406	MASPORT NAMEPLATE 13 ON	£5.19	Add to
052	MA-503150	CLIP STARLOCK 5 DIA	£0.63	Add to
053	MA-579741	SKIRT-SIDE, R/H 540 BLA	£11.87	Add to
054	MA-579742	SKIRT LH	£9.84	Add to
055	MA-503834	SCREW	£0.53	Add to
056	MA-503783	WASH PORT	£4.03	Add to
057	MA-580453	SCREW	£2.13	Add to
058	MA-569037	SAFETY RING	£15.72	Add to
059	MA-503419	WASHER	£0.87	Add to
