DECK

Parts list

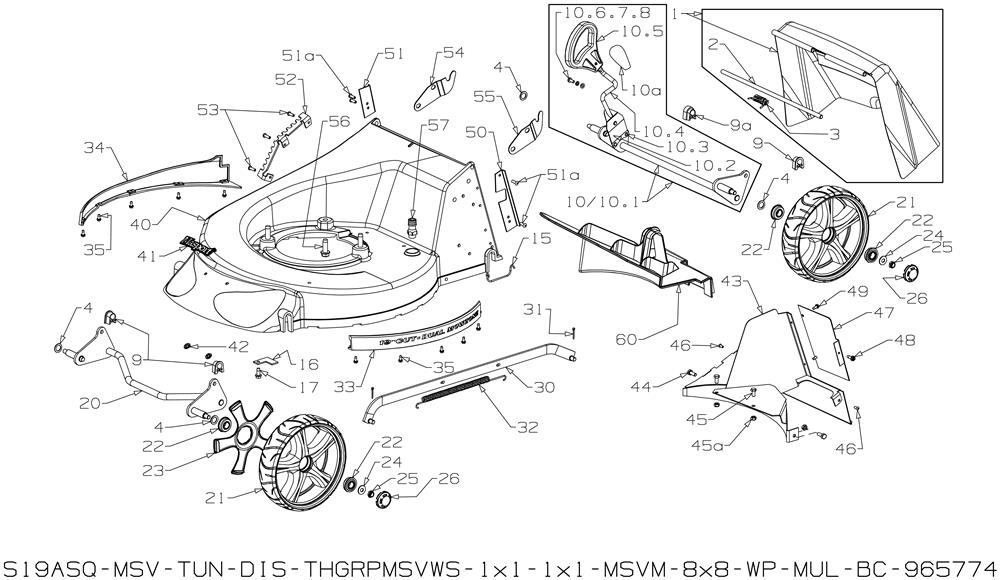

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	MA-764454	FLAP ASSY-STEEL CONTRA	£49.49	Add to
002	MA-583312	WIRE-FLAP PIVOT 325X8	£4.32	Add to
003	MA-565095	SPRING	£1.99	Add to
004	MA-503301	WASHER	£3.12	Add to
009	MA-580030	AXLE BUSH	£2.02	Add to
009A	MA-580668	AXLE BUSH	£0.81	Add to
010	MA-783302	REAR AXLE MSV NON SP	£31.74	Add to
010.2	MA-580649	LEAF SPRING	£4.86	Add to
010.3	MA-503373	RIVET	£1.00	Add to
010A	MA-581729	KNOB-HEIGHT, LEVER ADJUSTER	£2.78	Add to
015	MA-580225	AXLE RETAINING CLIP	£0.81	Add to
016	MA-583315	PLATE RETAINER	£1.47	Add to
017	MA-501599	SCREW	£1.52	Add to
020	MA-983305	AXLE ASSY	£26.25	Add to
021	MA-573703	WHEEL ASSY-200MM BB MA	£34.14	Add to
022	MA-551212	WHEEL BEARING	£5.15	Add to
023	MA-583398	COVER-INNER, WHEEL BLAC	£2.49	Add to
024	MA-501606	WASHER	£2.02	Add to
025	MA-503831	NUT, M8 HEX NYLOC X 6TH	£0.81	Add to
026	MA-583397	HUB CAP-BUTTON MAG BLA	£0.63	Add to
030	MA-571032	ROD ASSY-CONNECTING, 1	£20.08	Add to
031	MA-501056	COTTER PIN	£0.47	Add to
032	MA-581463	CTR BALANCE SPRING	£6.89	Add to
033	MA-579053	SKIRT LH	£12.86	Add to
034	MA-579052	SKIRT RH	£14.23	Add to
035	MA-503834	SCREW	£0.53	Add to
040	MA-769597	HSG-ASSY, ALIT 19" FS CO	£256.07	Add to
041	MA-567406	MASPORT NAMEPLATE 13 ON	£5.19	Add to
042	MA-503150	CLIP STARLOCK 5 DIA	£0.63	Add to
043	MA-564429	TUNNEL ASSY-19" SP/P A	£52.31	Add to
044	MA-501702	SCREW, SET M6X16 HEX	£0.59	Add to
045	MA-501959	SET SCREW	£0.53	Add to
045A	MA-501764	NUT REPLACE	£2.02	Add to
046	MA-503200	RIVET-POP 4.8DIAX12.7	£0.51	Add to
049	MA-503630	SCREW	£0.95	Add to
050	MA-573548	BRACKET, REAR FLAP LH	£4.44	Add to
051	MA-964368	BRACKET RH	£8.39	Add to
051A	MA-503200	RIVET-POP 4.8DIAX12.7	£0.51	Add to
052	MA-564133	QUADRANT-HEIGHT, STL 19	£13.57	Add to
053	MA-503200	RIVET-POP 4.8DIAX12.7	£0.51	Add to
054	MA-564300	BRACKET-CATCHER MOUNT.	£5.98	Add to
055	MA-564299	BRACKET-CATCHER MOUNT.	£5.98	Add to
056	MA-580453	SCREW	£2.13	Add to
057	MA-503783	WASH PORT	£4.03	Add to
060	MA-573116	INSERT, MULCHING	£31.32	Add to
