CUTTING

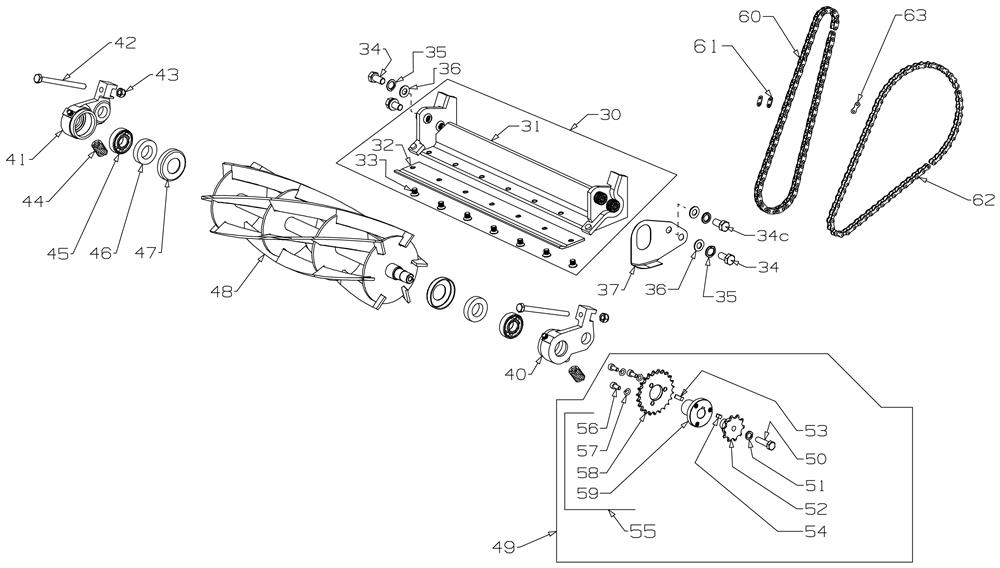

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
031	MA-009861	BOTTOM BLOCK 400	£74.69	Add to
032	MA-009872	BLADE BOTTOM 400	£108.10	Add to
033	MA-008611	BASEPLATE SCREW	£1.12	Add to
035	MA-503897	WASHER, SPG 10 ZP	£0.53	Add to
036	MA-501704	WASHER	£0.59	Add to
037	MA-002561	PLATE	£2.33	Add to
040	MA-032023	BEARING HOUSING LH	£37.75	Add to
041	MA-032024	BEARING HOUSING CYL RH	£37.75	Add to
042	MA-006282	BOLT	£5.19	Add to
044	MA-002581	SPRING BASEPLATE	£2.02	Add to
045	MA-503273	BEARING	£19.63	Add to
046	MA-002583	SEAL FELT	£2.07	Add to
047	MA-005211	ENDCOVER	£3.61	Add to
048	MA-032013	CYL 400 2011 SPEC	£354.47	Add to
049	MA-032006	SPROCKET ASSY CYL	£77.01	Add to
051	MA-503747	WASHER	£0.53	Add to
052	MA-032002	SPROCKET-10T, KEY, REEL	£29.66	Add to
055	MA-032045	SPROCKET ASSY-23, KEY	£64.91	Add to
058	MA-032003	SPROCKET-23T, KEY, REEL	£37.75	Add to
060	MA-002835	CHAIN 75P	£25.51	Add to
061	MA-731972	3/8 CHAIN LINK	£6.27	Add to
062	MA-004299	CHAIN CYL TO CLUTCH	£29.87	Add to
063	MA-731971	1/2 CHAIN CONN LINK	£6.27	Add to
