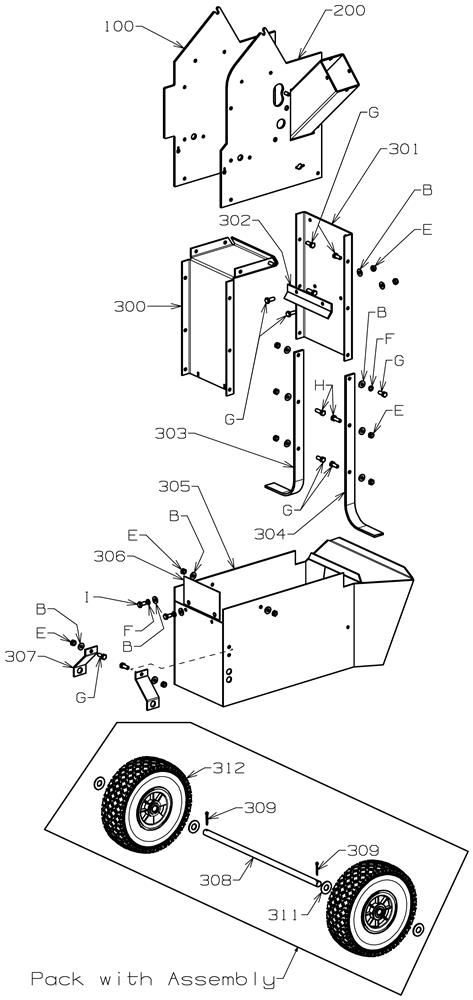

BODY - EXPLODED VIEW

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00BMA-501606WASHER£2.02 Add to
00EMA-501793NYLOC NUT M8£0.73 Add to
00FMA-503747WASHER£0.53 Add to
00GMA-501597SCREW M8X20£0.59 Add to
301MA-936018PLATE-FRONT, 6.5 XL GRN£31.21 Add to
303MA-936078LEFT LEG 5XL 2000£14.94 Add to
304MA-936079LEG RIGHT HAND 5XL 2000£14.94 Add to
311MA-502017WASHER, FLT 16X35 X 1.6£1.19 Add to
312MA-549984CHIPPER WHEEL£50.03 Add to
