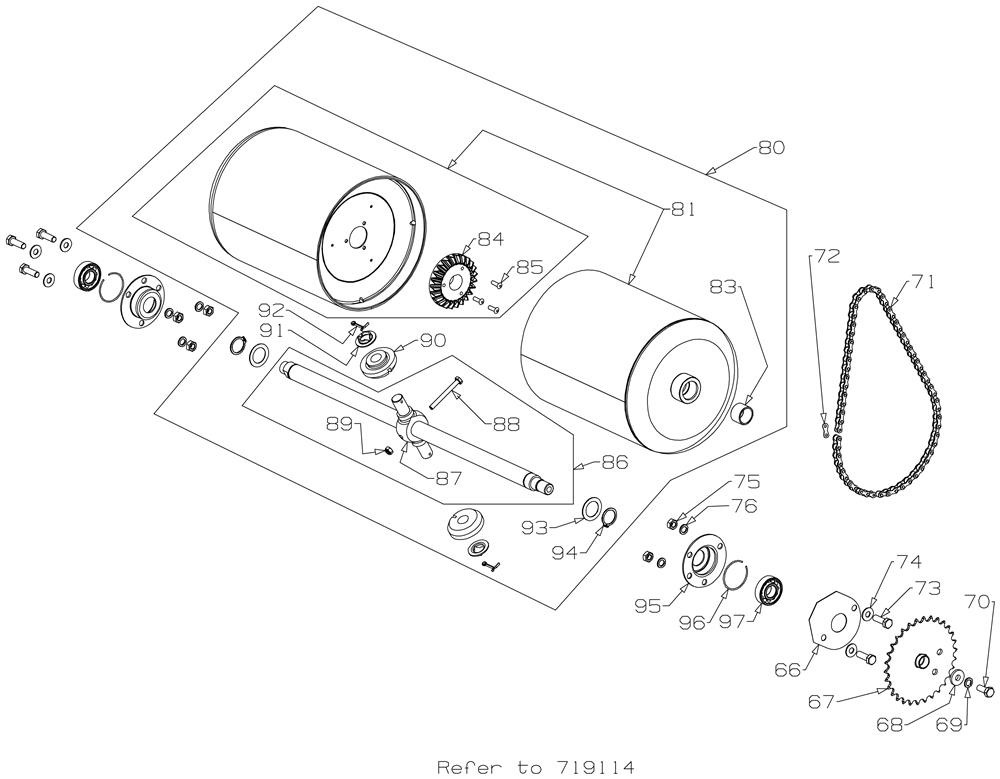

500-ROLLER-REAR, HALF_LH_ASSEMBLY

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
066	MA-002618	BEARING SEAL PLATE	£2.49	Add to
067	MA-002604	SPROCKET REAR ROLLER	£31.32	Add to
068	MA-503872	WASHER FLT	£1.71	Add to
069	MA-503747	WASHER	£0.53	Add to
070	MA-501717	SCREW M8 X 20 X 1MM PL	£1.38	Add to
071	MA-004929	CHAIN 3/16XP 1/2 40P	£21.11	Add to
072	MA-731971	1/2 CHAIN CONN LINK	£6.27	Add to
073	MA-501597	SCREW M8X20	£0.59	Add to
074	MA-501606	WASHER	£2.02	Add to
075	MA-501602	NUT, M8 HEX ZP	£0.53	Add to
076	MA-503747	WASHER	£0.53	Add to
080	MA-031918	ROLLER REAR COMP 500	£229.59	Add to
083	MA-007616	BEARING BUSH 7/8"IDX1"	£10.91	Add to
084	MA-002707	BEVEL WHEEL	£4.86	Add to
086	MA-008947	REAR ROLLER SHAFT ASSY	£85.47	Add to
087	MA-008943	BEVEL PINION CARRIER	£34.72	Add to
088	MA-567292	HIGH TENSILE BOLT	£0.87	Add to
089	MA-501764	NUT REPLACE	£2.02	Add to
090	MA-002708	PINION ASSY	£3.90	Add to
091	MA-008944	COLLAR	£1.75	Add to
092	MA-007473	SPLIT/PIN 1/8 X 1/4	£0.59	Add to
093	MA-002732	WASHER	£1.42	Add to
094	MA-007260	CIRCLIP	£0.73	Add to
095	MA-000409	BEARING HSG RR	£7.63	Add to
096	MA-004292	SPACER RING	£0.63	Add to
097	MA-503273	BEARING	£19.63	Add to
