WHEEL AXLE - REAR - AND HYDROTRANSMISSION(from s/n 516019 to s/n 546985 from 2009 to 2011)

Parts list

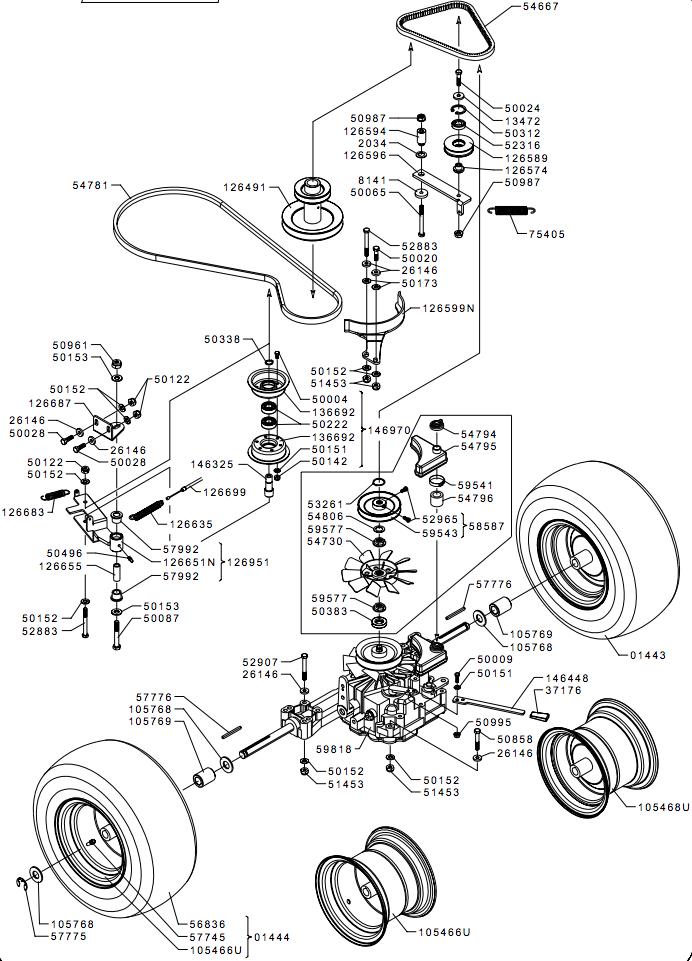

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0144301443RUBBER WHEEL£167.63 Add to
0144401444RUBBER WHEEL£167.63 Add to
105768105768WASHER£3.12 Add to
105769105769SPACER£6.69 Add to
126491126491ENGINE PULLEY CLS7£107.96 Add to
126574126574BUSHING£7.22 Add to
126596126596BRACKET£33.65 Add to
126599N126599NGUARD£32.96 Add to
126635126635SPRING£13.34 Add to
126655126655SPACER£12.06 Add to
126683126683SPRING£9.65 Add to
126687126687BRACKET£9.17 Add to
126699126699WIRE£6.77 Add to
126951126951SUPPORT£42.65 Add to
1347213472WASHER£3.19 Add to
136692136692GUIDE PULLEY£12.08 Add to
146448146448LEVER£3.86 Add to
146970146970GUIDE PULLEY£33.16 Add to
155902155902GUIDE PULLEY£33.43 Add to
165730165730BUSHING£6.29 Add to
200620200620GASKET£3.23 Add to
20342034SPACER£3.02 Add to
2614626146WASHER£3.64 Add to
3717637176KNOB£3.79 Add to
5000450004SCREW£1.36 Add to
5000950009SCREW£1.42 Add to
5002050020SCREW£1.44 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5008750087SCREW£2.07 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017350173WASHER£1.34 Add to
5022250222BEARING£8.85 Add to
5031250312CIRCLIP£1.71 Add to
5033850338CIRCLIP£1.42 Add to
5038350383SEAL RING£4.56 Add to
5049650496FITTING£1.90 Add to
5085850858SCREW£1.71 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5231652316BEARING£8.54 Add to
5288352883SCREW£1.86 Add to
5290752907SCREW£1.76 Add to
5296552965SCREW£1.44 Add to
5326153261CIRCLIP£1.56 Add to
5466754667BELT£34.98 Add to
5473054730BLOWER£34.18 Add to
5478154781BELT£106.50 Add to
5479454794PLUG£31.15 Add to
5479554795TANK£37.67 Add to
5479654796PIPE£11.05 Add to
5480654806WASHER£7.89 Add to
5683656836TYRE£98.73 Add to
5774557745VALVE£3.73 Add to
5777557775RING SNAP£1.94 Add to
5777657776FEATHER KEY£10.00 Add to
5799257992BUSHING£4.56 Add to
5858758587PULLEY KIT WITH SCREWS£82.47 Add to
5954159541CLAMP£8.78 Add to
5957759577NUT£7.89 Add to
5981859818HYDROS. TRANSMISSION K46£1,372.35 Add to
7540575405SPRING BELT STRECHER£12.27 Add to
81418141WASHER£3.84 Add to
