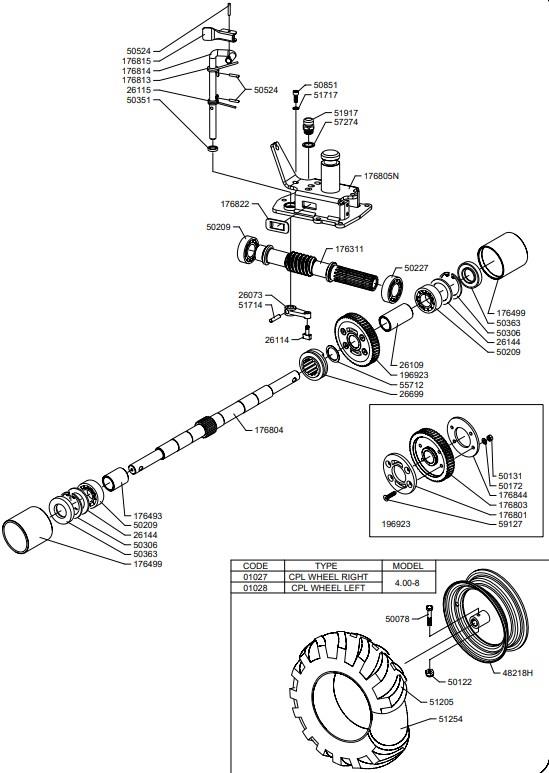

TYRES AXLE (from sn 599726 to sn 610151

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0149301493RUBBER WHEEL RH£147.80 Add to
0149401494RUBBER WHEEL LH£147.80 Add to
176311176311WORM SCREW£160.21 Add to
176493176493SPACER£7.07 Add to
176499176499WHEEL AXLE PROTECTION£14.16 Add to
176801176801DISK£20.22 Add to
176803176803RING GEAR£151.75 Add to
176804176804AXLE£84.31 Add to
176805N176805NHANDLEBAR BASE£111.30 Add to
176813176813SPRING£6.74 Add to
176814176814LEVER£14.14 Add to
176815176815LEVER£4.80 Add to
176822176822SMALL PLATE£8.09 Add to
176844176844DISK£5.89 Add to
196923196923RING GEAR£181.09 Add to
2607326073LEVER£20.56 Add to
2610926109SPACER£5.61 Add to
2611426114DISK£4.54 Add to
2611526115LEVER SPRING£3.64 Add to
2614426144SPACER£3.41 Add to
2669926699COUPLING£55.25 Add to
48218U48218URIM£70.48 Add to
5007850078SCREW£1.69 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5017250172WASHER£1.30 Add to
5020950209BEARING£15.55 Add to
5022750227BEARING£40.58 Add to
5030650306CIRCLIP£2.31 Add to
5035150351SEAL RING£3.28 Add to
5036350363SEAL RING£4.46 Add to
5052450524PIN£1.42 Add to
5085150851SCREW£1.58 Add to
5120551205TYRE£43.48 Add to
5125451254INNERTUBE£14.11 Add to
5171451714PIN£1.61 Add to
5171751717WASHER£2.43 Add to
5191751917PLUG£10.71 Add to
5571255712SPACER£1.12 Add to
5727457274WASHER£1.47 Add to
5912759127SCREW£0.72 Add to
