TYRES AXLE(from s/n 200251 from 1991)

Parts list

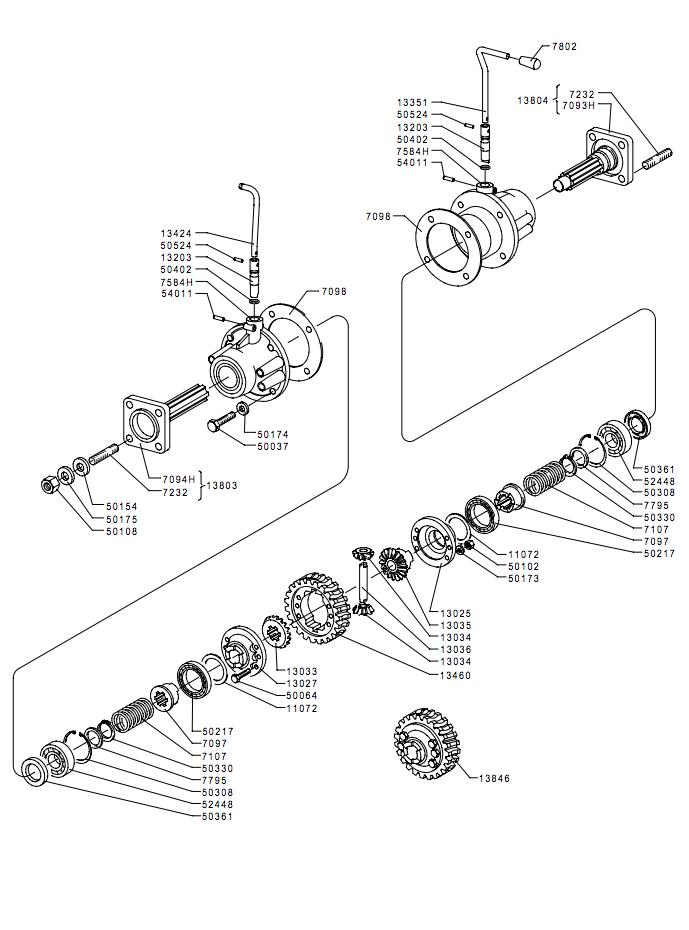

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1107211072SPACER£3.49 Add to
1302513025COVER£96.65 Add to
1302713027COVER£115.42 Add to
1303313033SUN GEAR£87.38 Add to
1303413034IDLE PINION£54.32 Add to
1303513035SUN GEAR£101.95 Add to
1303613036PIN£19.63 Add to
1320313203PLUNGER£24.90 Add to
1335113351ROD£17.39 Add to
1342413424ROD£15.54 Add to
1346013460RING GEAR£272.82 Add to
1380313803AXLE-SHAFT£165.80 Add to
1380413804AXLE-SHAFT£171.28 Add to
1384613846DIFFERENTIAL£727.61 Add to
5003750037SCREW£1.76 Add to
5006450064SCREW£1.85 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5015450154WASHER£1.37 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017550175WASHER£1.42 Add to
5021750217BEARING£37.62 Add to
5030850308CIRCLIP£2.27 Add to
5033050330CIRCLIP£1.76 Add to
5036150361SEAL RING£5.24 Add to
5040250402O-RING£1.52 Add to
5052450524PIN£1.42 Add to
5244852448BEARING£15.26 Add to
5401154011PIN£2.28 Add to
70977097COUPLING£62.48 Add to
70987098GASKET£3.10 Add to
71077107SPRING£4.69 Add to
72327232STUD£5.59 Add to
7584H7584HWHEEL HUB£168.22 Add to
77957795WASHER£3.93 Add to
78027802KNOB£4.62 Add to
