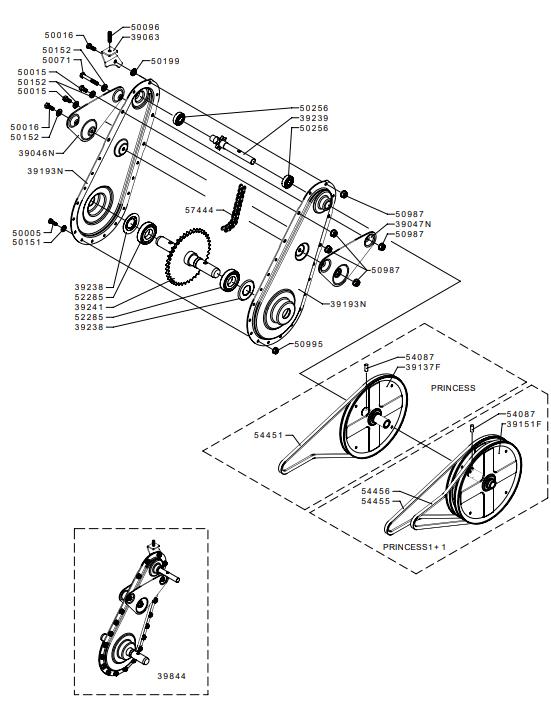

TRANSMISSION PRINCESS SINGLE GEAR & 1+1 (from sn 198751 from 1993)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
39046N39046NREINFORCEMENT£10.20 Add to
39047N39047NREINFORCEMENT£10.20 Add to
39193N39193NHALF GEARCASE£78.89 Add to
3923839238GUARD£1.88 Add to
3923939239SHAFT£45.14 Add to
3924139241SHAFT£65.53 Add to
39478F39478FPULLEY£72.30 Add to
39490F39490FPULLEY£72.50 Add to
3984439844GEARBOX£301.68 Add to
3997639976SUPPORT£8.96 Add to
5000550005SHAFT -INPUTN/A POA
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5007150071SCREW£1.75 Add to
5009650096STUD£3.31 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5025650256BEARING£9.83 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5228552285BEARING£11.04 Add to
5408754087PIN£1.89 Add to
5445154451BELT£27.37 Add to
5445554455BELT£39.19 Add to
5445654456BELT£19.21 Add to
5744457444DRIVE CHAIN£28.30 Add to
