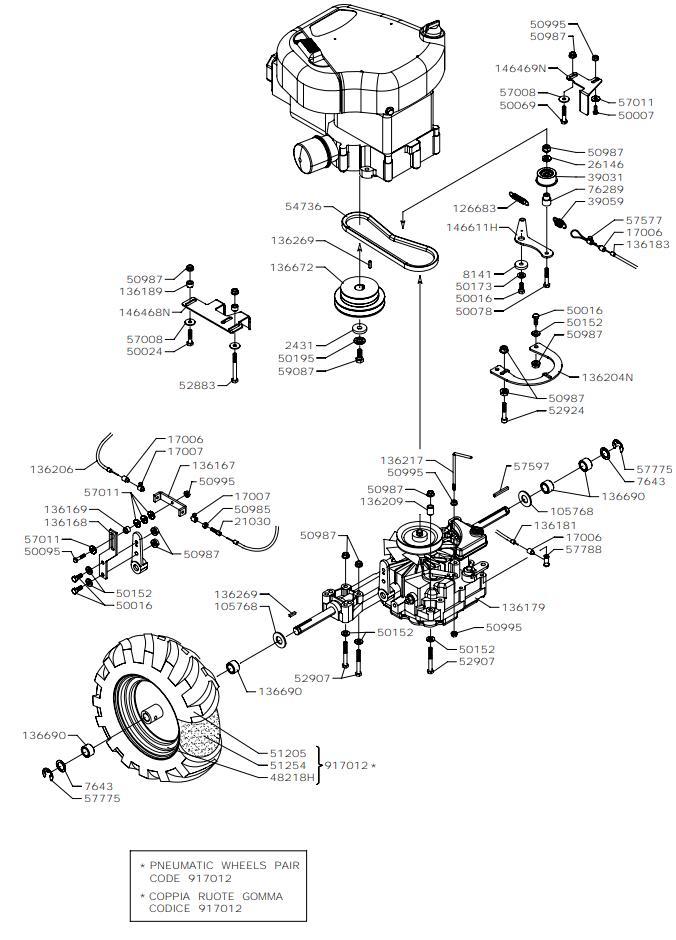

TRANSMISSION(from s/n 335641 from 2006)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105768105768WASHER£3.12 Add to
126683126683SPRING£9.65 Add to
136181136181WIRE£9.06 Add to
136183136183WIRE£8.97 Add to
136204N136204NSUPPORT£15.15 Add to
136206136206WIRE£25.55 Add to
136217136217LEVER£8.56 Add to
136269136269FEATHER KEY 4,76X4,76X18£6.09 Add to
136672136672ENGINE PULLEY CL620£103.55 Add to
136690136690SPACER£8.19 Add to
146469N146469NGUARD£9.08 Add to
146611H146611HTIGHTENER LEVER£7.88 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
2103021030ADJUSTER£3.67 Add to
24312431WASHER£4.07 Add to
2614626146WASHER£3.64 Add to
3903139031GUIDE PULLEY£13.51 Add to
3905939059SPRING£3.57 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5006950069SCREW£1.59 Add to
5009550095SCREW£1.42 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5120551205TYRE£43.48 Add to
5125451254INNERTUBE£14.11 Add to
5288352883SCREW£1.86 Add to
5290752907SCREW£1.76 Add to
5292452924SCREW£1.81 Add to
5473654736BELT£28.90 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5757757577CLAMP£2.95 Add to
5759757597FEATHER KEY£4.64 Add to
5777557775RING SNAP£1.94 Add to
5778857788CLAMP£3.39 Add to
5908759087SCREW£3.84 Add to
7628976289PIN£3.60 Add to
76437643SPACER£2.71 Add to
81418141WASHER£3.84 Add to
