TRANSMISSION BELTS AND REAR AXLE (from sn 637362 to sn 661742 from 2017 to 2018)

Parts list

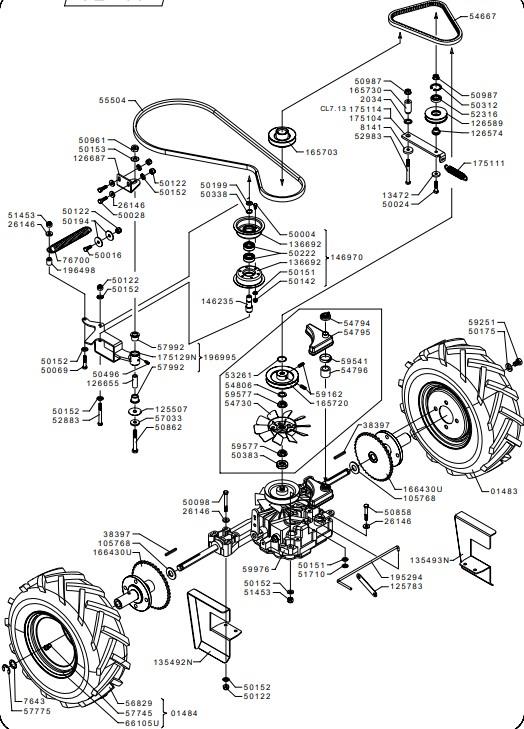

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0148301483REAR WHEEL 16.6-50/8 RH CLS7£240.46 Add to
0148401484REAR WHEEL 16.6-50/8 LH CLS7£240.46 Add to
105768105768WASHER£3.12 Add to
125507125507SPACER£2.22 Add to
125783125783SMALL PLATE£8.40 Add to
126574126574BUSHING£7.22 Add to
126655126655SPACER£12.06 Add to
126687126687BRACKET£9.17 Add to
1347213472WASHER£3.19 Add to
135492N135492NGUARD£35.23 Add to
135493N135493NGUARD£35.23 Add to
136692136692GUIDE PULLEY£12.08 Add to
146235146235PIN£8.34 Add to
146970146970GUIDE PULLEY£33.16 Add to
155902155902GUIDE PULLEY£33.43 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
165720165720PULLEY£79.17 Add to
165730165730BUSHING£6.29 Add to
166430U166430UREAR WHEEL HUB CLS7£117.68 Add to
175111175111SPRING£12.86 Add to
175114175114BRACKET£10.22 Add to
195294195294ROD£9.35 Add to
196498196498BUSHING£8.13 Add to
200099200099BRACKET£11.38 Add to
20342034SPACER£3.02 Add to
2614626146WASHER£3.64 Add to
3839738397FEATHER KEY£6.96 Add to
5000450004SCREW£1.36 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5009850098SCREW£1.97 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5019450194WASHER£1.60 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5031250312CIRCLIP£1.71 Add to
5033850338CIRCLIP£1.42 Add to
5038350383SEAL RING£4.56 Add to
5049650496FITTING£1.90 Add to
5085850858SCREW£1.71 Add to
5086250862SCREW£2.58 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5171051710RING£1.44 Add to
5231652316BEARING£8.54 Add to
5288352883SCREW£1.86 Add to
5298352983SCREW£2.22 Add to
5326153261CIRCLIP£1.56 Add to
5466754667BELT£34.98 Add to
5473054730BLOWER£34.18 Add to
5479454794PLUG£31.15 Add to
5479554795TANK£37.67 Add to
5479654796PIPE£11.05 Add to
5480654806WASHER£7.89 Add to
5550455504BELT£70.40 Add to
5682956829TYRE£123.96 Add to
5703357033WASHER£2.27 Add to
5774557745VALVE£3.73 Add to
5777557775RING SNAP£1.94 Add to
5799257992BUSHING£4.56 Add to
5916259162ALLEN SCREW£1.64 Add to
5925159251SCREW£1.71 Add to
5954159541CLAMP£8.78 Add to
5957759577NUT£7.89 Add to
5997659976HYDROS. TRANSMISSION K46£1,338.44 Add to
66105U66105URIM£98.38 Add to
76437643SPACER£2.71 Add to
7670076700SPRING£7.90 Add to
81418141WASHER£3.84 Add to
