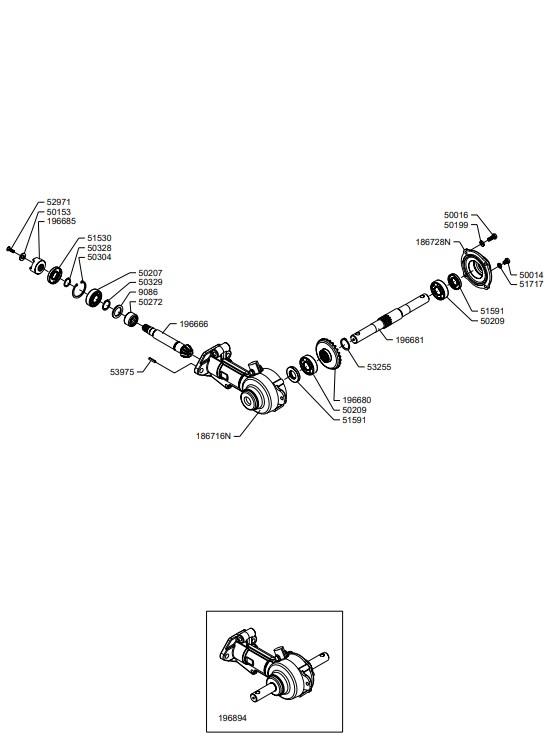

TILLER GEARBOX (from sn 644191 from 2017)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
186716N186716NGEARBOX£263.59 Add to
186728N186728NCOVER£62.79 Add to
196666196666PINION£104.67 Add to
196680196680RING GEAR£93.04 Add to
196681196681SHAFT£91.33 Add to
196685196685COUPLING£29.90 Add to
196894196894ROTARY HOE CENTRAL ASSEMBLY£505.10 Add to
5001450014SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5015350153WASHER£1.34 Add to
5019950199WASHER£1.58 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5027250272ROLLER BEARING£54.89 Add to
5030450304CIRCLIP£2.09 Add to
5032850328CIRCLIP£1.44 Add to
5032950329CIRCLIP£1.68 Add to
5153051530SEAL RING£5.33 Add to
5159151591SEAL RING£3.48 Add to
5171751717WASHER£2.43 Add to
5297152971SCREW£1.36 Add to
5325553255CIRCLIP£0.69 Add to
5397553975PIN£0.29 Add to
90869086SPACER£3.69 Add to
