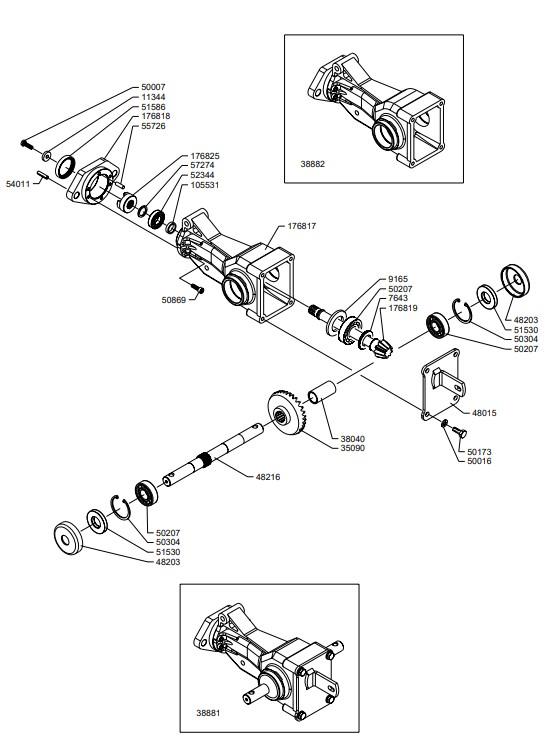

TILLER GEARBOX (from sn 599726 to sn 644190 from 2015 to 2017)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
105531105531SPACER£4.69 Add to
1134411344WASHER£2.95 Add to
176817176817GEARBOX£198.97 Add to
176818176818FLANGE£71.48 Add to
176819176819ROTARY HOE PINION£99.91 Add to
176825176825COUPLING£30.35 Add to
3509035090RING GEAR£61.35 Add to
3804038040SPACER£6.83 Add to
3888138881ROTARY HOE CENTRAL ASSEMBLY£531.68 Add to
3888238882GEARBOX£219.22 Add to
4801548015COVER£23.55 Add to
4820348203COVER£11.55 Add to
4821648216SHAFT£55.19 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5017350173WASHER£1.34 Add to
5020750207BEARING£8.85 Add to
5030450304CIRCLIP£2.09 Add to
5086950869SCREW£1.42 Add to
5153051530SEAL RING£5.33 Add to
5158651586SEAL RING£3.05 Add to
5234452344BEARING£9.10 Add to
5401154011PIN£2.28 Add to
5572655726PIN£1.49 Add to
5727457274WASHER£1.47 Add to
76437643SPACER£2.71 Add to
91659165SPACER£3.41 Add to
