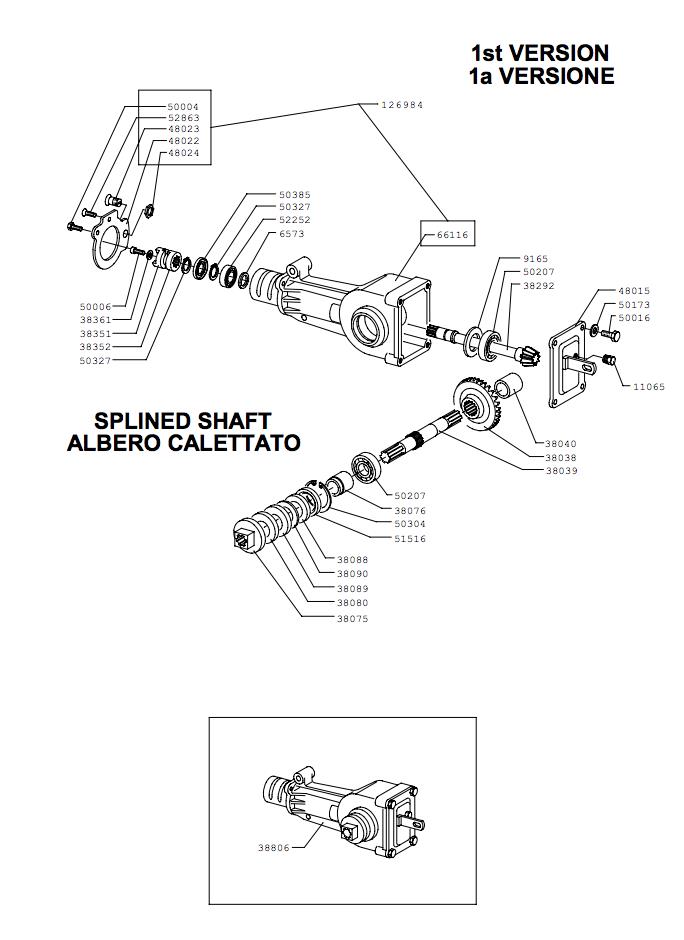

TILLER GEARBOX - 1st VERSION(from s/n 168897 to s/n 327346 from 1990 to 2005)

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
11065	11065	MALE HEXAGONAL PLUG	£5.09	Add to
126984	126984	GEARBOX	£221.63	Add to
38038	38038	RING GEAR	£73.16	Add to
38039	38039	SHAFT	£75.38	Add to
38040	38040	SPACER	£6.83	Add to
38076	38076	RING	£18.47	Add to
38080	38080	COVER	£30.13	Add to
38088	38088	WASHER	£3.20	Add to
38089	38089	RING	£4.61	Add to
38090	38090	SPACER	£2.20	Add to
38292	38292	ROTARY HOE PINION	£77.75	Add to
38351	38351	COUPLING	£21.53	Add to
38352	38352	COUPLING	£19.03	Add to
38361	38361	WASHER	£0.37	Add to
38806	38806	ROTARY HOE CENTRAL ASSEMBLY	£500.40	Add to
48015	48015	COVER	£23.55	Add to
48022	48022	FLANGE	£15.31	Add to
48023	48023	BUSHING	£17.39	Add to
48024	48024	NUT	£6.20	Add to
50004	50004	SCREW	£1.36	Add to
50006	50006	SCREW	£1.42	Add to
50016	50016	SCREW	£18.80	Add to
50173	50173	WASHER	£1.34	Add to
50207	50207	BEARING	£8.85	Add to
50304	50304	CIRCLIP	£2.09	Add to
50327	50327	CIRCLIP	£1.40	Add to
50385	50385	SEAL RING	£4.33	Add to
51516	51516	SEAL RING	£4.09	Add to
52252	52252	BEARING	£15.66	Add to
52863	52863	SCREW	£1.42	Add to
6573	6573	SPACER	£2.70	Add to
9165	9165	SPACER	£3.41	Add to
