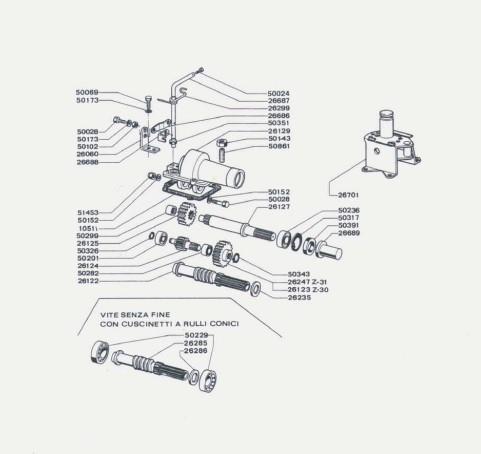

SYNCHROMESH PTO (from sn 226751 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1051110511GASKET£3.43 Add to
2606026060SUPPORT£11.31 Add to
2612226122WORM SCREW£172.61 Add to
2612326123GEAR£131.52 Add to
2612426124SHAFT£90.47 Add to
2612526125GEAR£131.52 Add to
2612726127SHAFT£131.23 Add to
26129N26129NGEARBOX£313.26 Add to
2623526235LINK-AIR VANE£5.99 Add to
2624726247GEAR£190.46 Add to
2628526285WORM SCREW£167.64 Add to
2628626286RING£38.52 Add to
2629926299LEVER SPRING£14.45 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006950069SCREW£1.59 Add to
5010250102NUT£1.36 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5020150201BEARING£15.38 Add to
5022950229BEARING£36.54 Add to
5023650236BEARING£14.72 Add to
5028250282ROLLER BEARING£18.35 Add to
5029950299ROLLER BEARING£29.89 Add to
5031750317CIRCLIP£1.97 Add to
5032650326CIRCLIP£1.37 Add to
5034350343CIRCLIP£1.42 Add to
5035150351SEAL RING£3.28 Add to
5039150391SEAL RING£2.73 Add to
5086150861ALLEN SCREW£1.98 Add to
5145351453NUT£1.36 Add to
